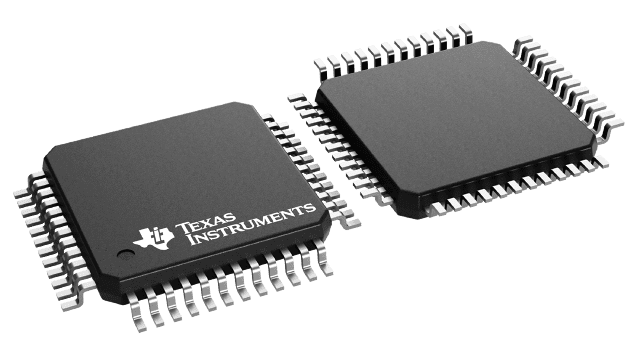

DS15BR400TVS/NOPB Texas Instruments - Yeehing Electronics

4-channel LVDS buffer/repeater with pre-emphasis

Pricing (USD)

Quantity	Unit Price
1 — 99	7.189
100 — 249	5.861
250 — 999	4.606
1,000 +	3.13

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LVDS Interface IC
RoHS	Y
Type	LVDS
Number of Drivers	4 Driver
Number of Receivers	4 Receiver
Data Rate	2000 Mb/s
Input Type	CML, LVDS, LVPECL
Output Type	LVDS
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	TQFP-48
Packaging	Tray
Height	1 mm
Input Voltage MAX	100 mV
Length	7 mm
Series	DS15BR400
Width	7 mm
Brand	Texas Instruments
Development Kit	DS15BR400EVK/NOPB
Input Voltage MIN	- 100 mV
Maximum Output Voltage	500 mV
Moisture Sensitive	Yes
Operating Supply Current	215 mA
Operating Supply Voltage	3.3 V
Pd - Power Dissipation	1.64 W
Product Type	LVDS Interface IC
Propagation Delay Time	2 ns
Factory Pack Quantity	250
Subcategory	Interface ICs
Unit Weight	0.319998 oz

For more information, please refer to datasheet

Documents

DS15BR400TVS/NOPB Datasheet

More Information

The DS15BR400/DS15BR401 are four channel LVDS buffer/repeaters capable of data rates of up to 2 Gbps. High speed data paths and flow-through pinout minimize internal device jitter and simplify board layout, while pre-emphasis overcomes ISI jitter effects from lossy backplanes and cables. The differential inputs interface to LVDS, and Bus LVDS signals such as those on TI's 10-, 16-, and 18- bit Bus LVDS SerDes, as well as CML and LVPECL. The differential inputs and outputs of the DS15BR400 are internally terminated with 100Ω resistors to improve performance and minimize board space. The DS15BR401 does not have input termination resistors. The repeater function is especially useful for boosting signals for longer distance transmission over lossy cables and backplanes.
