DS16EV5110ASQ/NOPB Texas Instruments - Yeehing Electronics

Video equalizer (3D+C) for DVI, HDMI source/repeater/sink applications

Pricing (USD)

Quantity	Unit Price
1 — 99	6.227
100 — 249	5.076
250 — 999	3.99
1,000 +	2.37

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Equalizers
RoHS	Y
Mounting Style	SMD/SMT

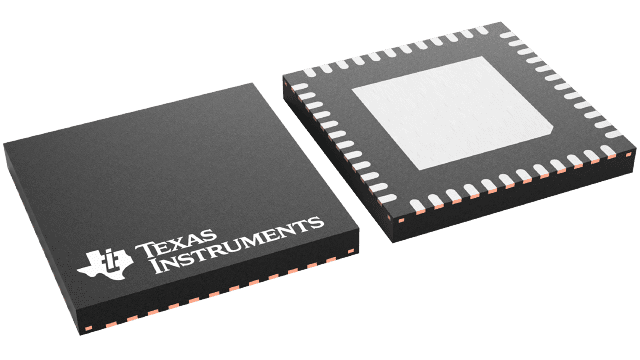

Package / Case	WQFN-48
Product	Cable Equalizers
Data Rate	0.25 Gb/s to 2.25 Gb/s
Operating Supply Voltage	3.3 V
Operating Supply Current	212 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	DS16EV5110A
Packaging	Reel
Features	Input Equalization
Operating Temperature Range	- 40 C to + 85 C
Output Current	1 uA
Brand	Texas Instruments
Moisture Sensitive	Yes
Number of Drivers	1 Driver
Number of Receivers	1 Receiver
Pd - Power Dissipation	700 mW
Product Type	Equalizers
Factory Pack Quantity	1000
Subcategory	Equalizers
Unit Weight	0.003598 oz

For more information, please refer to datasheet

Documents

DS16EV5110ASQ/NOPB Datasheet

More Information

The DS16EV5110A is a multi-channel equalizer optimized for video cable extension Source/Repeater/Sink Applications. It operates between 250Mbps and 2.25Gbps with common applications at 1.65Gbps and 2.25Gbps (per data channel). It contains three Transition-Minimized Differential Signaling (TMDS) data channels and one clock channel as specified for DVI and HDMI interfaces. It provides compensation for skin-effect and dielectric losses, a common phenomenon when transmitting video on commercially available high definition video cables.
