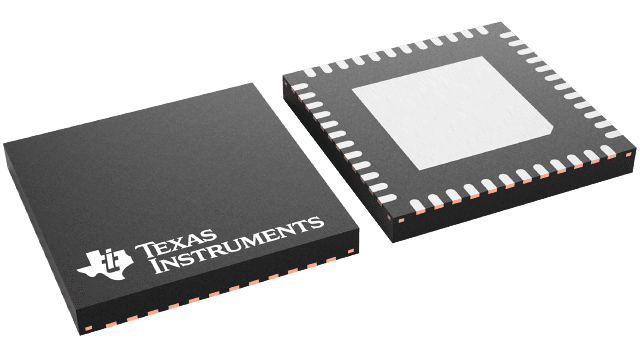

DS16EV5110ASQE/NOPB Texas Instruments - Yeehing Electronics
Video equalizer (3D+C) for DVI, HDMI source/repeater/sink applications
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 6.227 |
100 — 249 | 5.076 |
250 — 999 | 3.99 |
1,000 + | 2.37 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Equalizers |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | WQFN-48 |
Product | Cable Equalizers |
Data Rate | 0.25 Gb/s to 2.25 Gb/s |
Operating Supply Voltage | 3.3 V |
Operating Supply Current | 212 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Series | DS16EV5110A |
Packaging | Reel |
Features | Input Equalization |
Operating Temperature Range | - 40 C to + 85 C |
Output Current | 1 uA |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Number of Drivers | 1 Driver |
Number of Receivers | 1 Receiver |
Pd - Power Dissipation | 700 mW |
Product Type | Equalizers |
Factory Pack Quantity | 250 |
Subcategory | Equalizers |
Unit Weight | 0.003598 oz |
For more information, please refer to datasheet
Documents
DS16EV5110ASQE/NOPB Datasheet |
More Information
The DS16EV5110A is a multi-channel equalizer optimized for video cable extension Source/Repeater/Sink Applications. It operates between 250Mbps and 2.25Gbps with common applications at 1.65Gbps and 2.25Gbps (per data channel). It contains three Transition-Minimized Differential Signaling (TMDS) data channels and one clock channel as specified for DVI and HDMI interfaces. It provides compensation for skin-effect and dielectric losses, a common phenomenon when transmitting video on commercially available high definition video cables.
