Texas Instruments
DS16EV5110SQ/NOPB
DS16EV5110SQ/NOPB
Regular price
$3.55 USD
Regular price
Sale price
$3.55 USD
Unit price
per
Couldn't load pickup availability

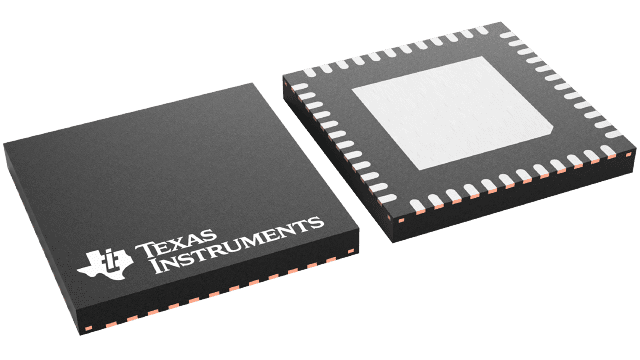

DS16EV5110SQ/NOPB Texas Instruments - Yeehing Electronics
Video equalizer (3D+C) for DVI, HDMI sink-side applications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.327 |
| 100 — 249 | 7.604 |
| 250 — 999 | 5.976 |
| 1,000 + | 3.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Equalizers |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-48 |
| Product | Cable Equalizers |
| Data Rate | 0.25 Gb/s to 2.25 Gb/s |
| Operating Supply Voltage | 3.3 V |
| Operating Supply Current | 212 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | DS16EV5110 |
| Packaging | Reel |
| Features | Input Equalization |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Number of Drivers | 1 Driver |
| Number of Receivers | 1 Receiver |
| Pd - Power Dissipation | 700 mW |
| Product Type | Equalizers |
| Factory Pack Quantity | 250 |
| Subcategory | Equalizers |
| Unit Weight | 0.010582 oz |
For more information, please refer to datasheet
Documents
| DS16EV5110SQ/NOPB Datasheet |
More Information
The DS16EV5110 is a multi-channel equalizer optimized for video cable extension sink-side applications. It operates between 250Mbps and 2.25Gbps with common applications at 1.65Gbps and 2.25Gbps (per data channel). It contains three Transition-Minimized Differential Signaling (TMDS) data channels and one clock channel as commonly found in DVI and HDMI cables. It provides compensation for skin-effect and dielectric losses, a common phenomenon when transmitting video on commercially available high definition video cables.
