Description

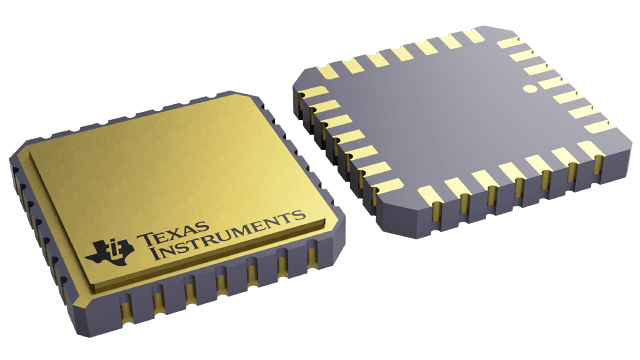

DS1776E/883 Texas Instruments - Yeehing Electronics
Pi-Bus Transceiver
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 130.711 |
100 — 249 | 126.78 |
250 — 999 | 105.552 |
1,000 + | 68.80 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
DS1776E/883 Datasheet |
More Information
The DS1776 is an octal PI-bus Transceiver. The A to B path is latched. B outputs are open collector with series Schottky diode, ensuring minimum B output loading. B outputs also have ramped rise and fall times (2.5 ns typical), ensuring minimum PI-bus ringing. B inputs have glitch rejection circuitry, 4 ns typical.
