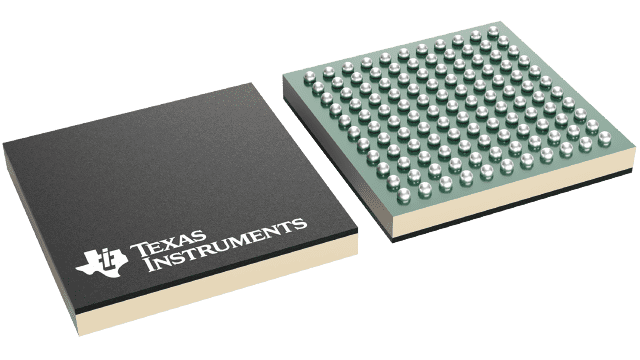

DS250DF210ABMT Texas Instruments - Yeehing Electronics
25-Gbps multi-rate 2-channel retimer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 25.232 |
| 100 — 249 | 22.04 |
| 250 — 999 | 16.994 |
| 1,000 + | 10.64 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Interface - Signal Buffers, Repeaters |
| RoHS | Y |
| Product | Retimers |
| Propagation Delay Time | - |
| Maximum Clock Frequency | 25 MHz |
| Operating Supply Voltage | 2.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | ABM-101 |
| Packaging | Reel |
| Application | Backplane, Front Port, Active Cable |
| Data Rate | 25.8 Gb/s |
| Series | DS250DF210 |
| Type | Multi-Rate Retimer |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| Moisture Sensitive | Yes |
| Product Type | Signal Buffers, Repeaters |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
For more information, please refer to datasheet
Documents
| DS250DF210ABMT Datasheet |
More Information
The DS250DF210 device is a two-channel, multi-rate retimer with integrated signal conditioning. It is used to extend the reach and robustness of long, lossy, crosstalk-impaired, high-speed serial links while achieving a bit error rate (BER) of 10-15 or less.
