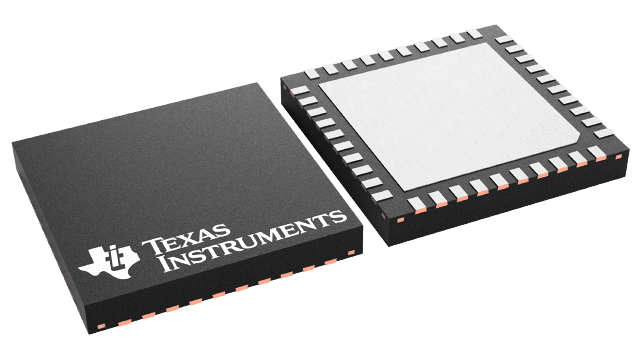

DS25BR440TSQX/NOPB Texas Instruments - Yeehing Electronics
3.125-Gbps quad LVDS buffer with transmit pre-emphasis and receive equalization
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.765 |
| 100 — 249 | 4.7 |
| 250 — 999 | 3.694 |
| 1,000 + | 2.19 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LVDS Interface IC |
| RoHS | Y |
| Type | LVDS |
| Number of Drivers | 4 Driver |
| Number of Receivers | 4 Receiver |
| Data Rate | 3125 Mb/s |
| Input Type | CML, LVDS, LVPECL |
| Output Type | LVDS |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-40 |
| Packaging | Reel |
| Height | 0.8 mm |
| Input Voltage MAX | 100 mV |
| Length | 6 mm |
| Series | DS25BR440 |
| Width | 6 mm |
| Brand | Texas Instruments |
| Input Voltage MIN | - 100 mV |
| Maximum Output Voltage | 450 mV |
| Moisture Sensitive | Yes |
| Operating Supply Current | 190 mA |
| Operating Supply Voltage | 3.3 V |
| Pd - Power Dissipation | 2.44 W |
| Product Type | LVDS Interface IC |
| Propagation Delay Time | 60 ps |
| Factory Pack Quantity | 2500 |
| Subcategory | Interface ICs |
For more information, please refer to datasheet
Documents
| DS25BR440TSQX/NOPB Datasheet |
More Information
The DS25BR440 is a 3.125 Gbps Quad LVDS buffer optimized for high-speed signal routing and repeating over lossy FR-4 printed circuit board backplanes and balanced cables. Fully differential signal paths ensure exceptional signal integrity and noise immunity.
