Texas Instruments

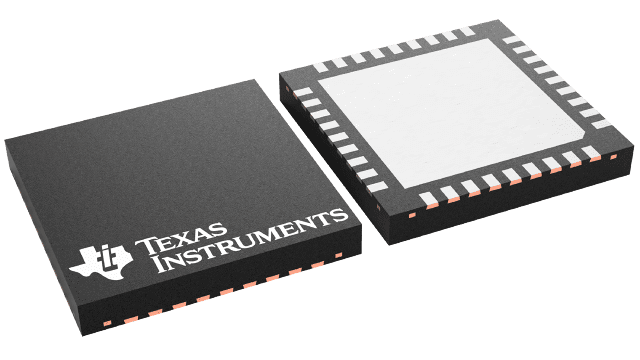

DS25MB100TSQX/NOPB
DS25MB100TSQX/NOPB
Regular price
$2.56 USD
Regular price
Sale price
$2.56 USD
Unit price
per
Couldn't load pickup availability
DS25MB100TSQX/NOPB Texas Instruments - Yeehing Electronics
2.5-Gbps 2:1/1:2 CML mux/buffer with transmit pre-emphasis and receive equalization
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.72 |
| 100 — 249 | 5.478 |
| 250 — 999 | 4.306 |
| 1,000 + | 2.56 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Buffers & Line Drivers |
| RoHS | Y |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | WQFN-36 |
| Packaging | Reel |
| Data Rate | 2500 Mb/s |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | CML |
| Series | DS25MB100 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 136 mA |
| Product Type | Buffers & Line Drivers |
| Factory Pack Quantity | 2500 |
| Subcategory | Logic ICs |
For more information, please refer to datasheet
Documents
| DS25MB100TSQX/NOPB Datasheet |
More Information
The DS25MB100 device is a signal conditioning 2:1 multiplexer and 1:2 fan-out buffer designed for use in backplane-redundancy or cable driving applications. Signal conditioning features include continuous time linear equalization (CTLE) and programmable output pre-emphasis that enable data communication in FR4 backplane up to 2.5 Gbps. Each input stage has a fixed equalizer to reduce ISI distortion from board traces.
