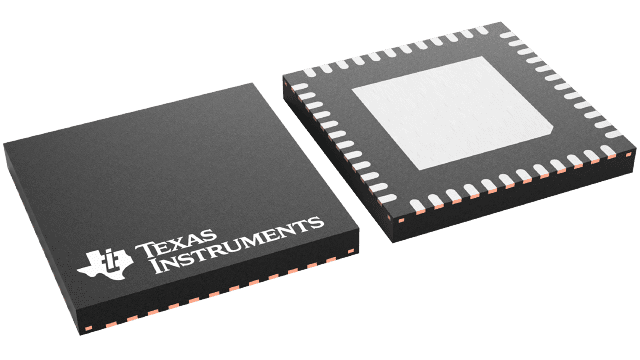

DS25MB200TSQ/NOPB Texas Instruments - Yeehing Electronics
Dual 2.5-Gbps 2:1/1:2 CML mux/buffer with transmit pre-emphasis and receive equalization
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.286 |
| 100 — 249 | 5.94 |
| 250 — 999 | 4.669 |
| 1,000 + | 2.77 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Encoders, Decoders, Multiplexers & Demultiplexers |
| RoHS | Y |
| Product | Multiplexers |
| Number of Input Lines | 12 Input |
| Number of Output Lines | 10 Output |
| Supply Voltage - Min | 3.135 V |
| Supply Voltage - Max | 3.465 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-48 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | DS25MB200 |
| Brand | Texas Instruments |
| Development Kit | DS25MB200-EVK |
| Moisture Sensitive | Yes |
| Operating Supply Current | 289 mA |
| Product Type | Encoders, Decoders, Multiplexers & Demultiplexers |
| Factory Pack Quantity | 250 |
| Subcategory | Logic ICs |
| Unit Weight | 0.003601 oz |
For more information, please refer to datasheet
Documents
| DS25MB200TSQ/NOPB Datasheet |
More Information
The DS25MB200 is a dual signal conditioning 2:1 multiplexer and 1:2 fan-out buffer designed for use in backplane redundancy applications. Signal conditioning features include input equalization and programmable output pre-emphasis that enable data communication in FR4 backplanes up to 2.5 Gbps. Each input stage has a fixed equalizer to reduce ISI distortion from board traces. All output drivers have 4 selectable steps of pre-emphasis to compensate for transmission losses from long FR4 backplanes and reduce deterministic jitter. The pre-emphasis levels can be independently controlled for the line-side and switch-side drivers. The internal loopback paths from switch-side input to switch-side output enable at-speed system testing. All receiver inputs are internally terminated with 100Ω differential terminating resistors. All drivers are internally terminated with 50Ω to VCC.
