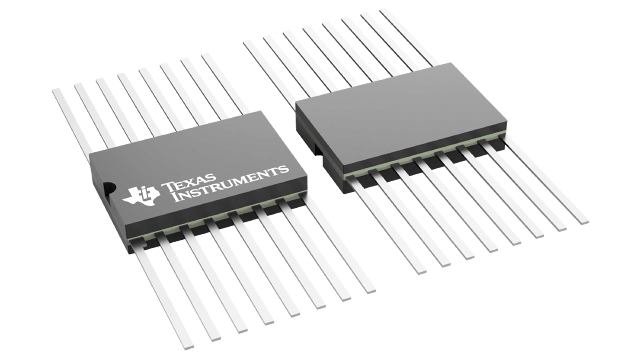

DS26LV31W-QML Texas Instruments - Yeehing Electronics
3V Enhanced CMOS Quad Differential Line Driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 34.271 |
| 100 — 249 | 29.935 |
| 250 — 999 | 23.081 |
| 1,000 + | 14.45 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| DS26LV31W-QML Datasheet |
More Information
The DS26lV31 is a high-speed quad differential CMOS driver that is comparable to the TIA/EIA-422-B and ITU-T V.11 standards. The CMOS DS26LV31 features low static ICC of 125 µA Max which makes it ideal for battery powered and power conscious applications. Differential outputs have the same VOD specification (≥2V) as the 5V version. The EN and EN inputs allow active Low or active High control of the TRI-STATE outputs. The enables are common to all four drivers. Protection diodes protect all the driver inputs against electrostatic discharge. The driver and enable inputs (DI, EN, EN) are compatible with low voltage LVTTL and LVCMOS devices.
