DS26LV32AW-QML Texas Instruments - Yeehing Electronics

3V Enhanced CMOS Quad Differential Line Receiver

Pricing (USD)

Quantity	Unit Price
1 — 99	33.788
100 — 249	29.513
250 — 999	22.756
1,000 +	14.25

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-55
Maximum Operating Temperature	125
Factory Pack Quantity	19

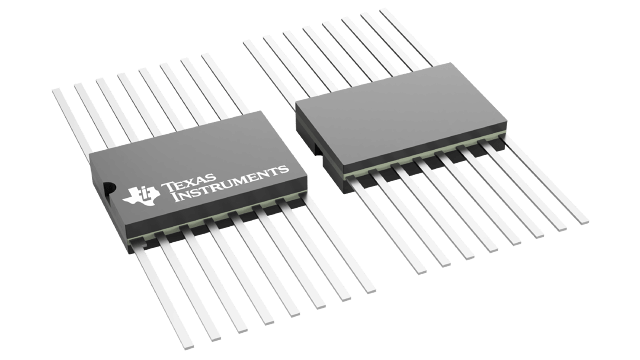

Package | Pins	CFP (NAD) | 16

For more information, please refer to datasheet

Documents

DS26LV32AW-QML Datasheet

More Information

The DS26LV32A is a high speed quad differential CMOS receiver that is comparable to TIA/EIA-422-B and ITU-T V.11 standards, but with a specified common mode voltage range of -0.5V to +5.5V due to the lower operating supply voltage of 3.0V to 3.6V. The TRI-STATE enables, EN and EN, allow the device to be active High or active Low. The enables are common to all four receivers. The receiver output (RO) is specified to be High when the inputs are left open. The receiver can detect signals as low as ±200mV over the common mode range of -0.5V to +5.5V. The receiver outputs (RO) are compatible with TTL and LVCMOS levels.
