Description

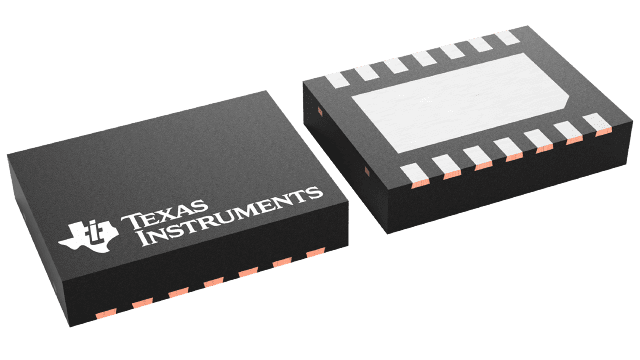

DS32EV100SD/NOPB Texas Instruments - Yeehing Electronics
Programmable single equalizer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.76 |
| 100 — 249 | 3.881 |
| 250 — 999 | 3.05 |
| 1,000 + | 1.81 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Equalizers |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-14 |
| Product | Cable Equalizers |
| Data Rate | 3.2 Gb/s |
| Operating Supply Voltage | 2.5 V, 3.3 V |
| Operating Supply Current | 61 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | DS32EV100 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Number of Drivers | 1 Driver |
| Number of Receivers | 1 Receiver |
| Product Type | Equalizers |
| Factory Pack Quantity | 1000 |
| Subcategory | Equalizers |
For more information, please refer to datasheet
Documents
| DS32EV100SD/NOPB Datasheet |
More Information
The DS32EV100 programmable equalizer provides compensation for transmission medium losses and reduces the medium-induced deterministic jitter for NRZ data channel. The DS32EV100 is optimized for operation up to 3.2 Gbps for both cables and FR4 traces. The equalizer channel has eight levels of input equalization that can be programmed by three control pins.
