Texas Instruments
DS38EP100SD/NOPB
DS38EP100SD/NOPB
Regular price
$0.55 USD
Regular price
Sale price
$0.55 USD
Unit price
per
Couldn't load pickup availability

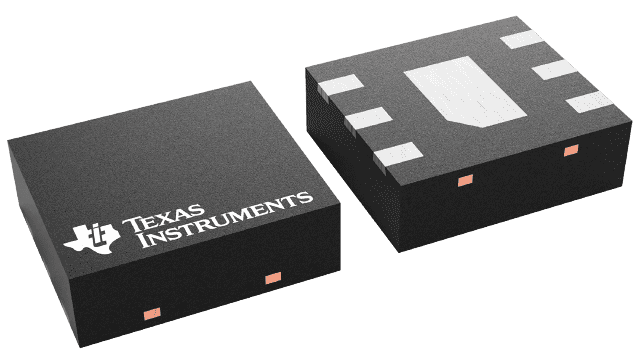

DS38EP100SD/NOPB Texas Instruments - Yeehing Electronics
1 to 5-Gbps, power-saver equalizer for backplanes and cables
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.774 |
| 100 — 249 | 1.465 |
| 250 — 999 | 1.053 |
| 1,000 + | 0.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Equalizers |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-6 |
| Product | Cable Equalizers |
| Data Rate | 5 Gb/s |
| Operating Supply Voltage | - |
| Operating Supply Current | 0 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | DS38EP100 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Type | Passive Equalizer |
| Brand | Texas Instruments |
| Development Kit | DS38EP100-EVKH |
| Number of Drivers | 1 Driver |
| Number of Receivers | 1 Receiver |
| Product Type | Equalizers |
| Factory Pack Quantity | 1000 |
| Subcategory | Equalizers |
| Supply Voltage - Max | - |
| Supply Voltage - Min | - |
| Unit Weight | 0.000342 oz |
For more information, please refer to datasheet
Documents
| DS38EP100SD/NOPB Datasheet |
More Information
TI’s Power-saver equalizer compensates for transmission medium losses and minimizes medium-induced deterministic jitter. Performance is ensured over the full range of 1 to 5 Gbps. The DS38EP100 requires no power to operate. The equalizer operates anywhere in the data path to minimize media-induced deterministic jitter in both FR4 and cable applications. Symmetric I/O structures support full duplex or half duplex applications. Linear compensation is provided independent of line coding or protocol. The device is ideal for both bi-level and multi-level signaling.
