DS40MB200SQ/NOPB Texas Instruments - Yeehing Electronics

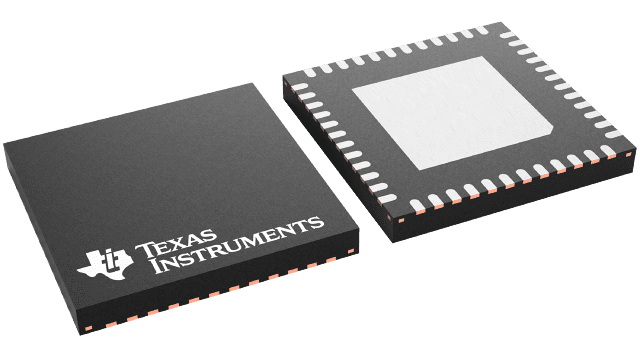

Dual 4.0-Gbps 2:1/1:2 CML mux/buffer with transmit pre-emphasis and receive equalization
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.13 |
| 100 — 249 | 7.975 |
| 250 — 999 | 6.149 |
| 1,000 + | 3.85 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Buffers & Line Drivers |
| RoHS | Y |
| Number of Input Lines | 12 Input |
| Number of Output Lines | 12 Output |
| Polarity | Non-Inverting |
| Supply Voltage - Max | 3.47 V |
| Supply Voltage - Min | 3.13 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-48 |
| Packaging | Reel |
| Data Rate | 4 Gb/s |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | CML |
| Series | DS40MB200 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 289 mA |
| Operating Supply Voltage | 3.3 V |
| Product Type | Buffers & Line Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | Logic ICs |
For more information, please refer to datasheet
Documents
| DS40MB200SQ/NOPB Datasheet |
More Information
The DS40MB200 device is a dual signal conditioning 2:1 multiplexer (MUX) and 1:2 fan-out buffer designed for use in backplane-redundancy applications. Signal conditioning features include continuous time linear equalization (CTLE) and programmable output pre-emphasis, extending data communication in FR4 backplanes at rates up to 4 Gbps. Each input stage has a fixed equalizer to reduce intersymbol interference distortion from board traces.
