DS42BR400TSQ/NOPB Texas Instruments - Yeehing Electronics
Quad 4.25-Gbps CML transceiver with transmit de-emphasis & receive equalization
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.523 |
| 100 — 249 | 6.571 |
| 250 — 999 | 5.067 |
| 1,000 + | 3.17 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Bus Transceivers |
| RoHS | Y |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |

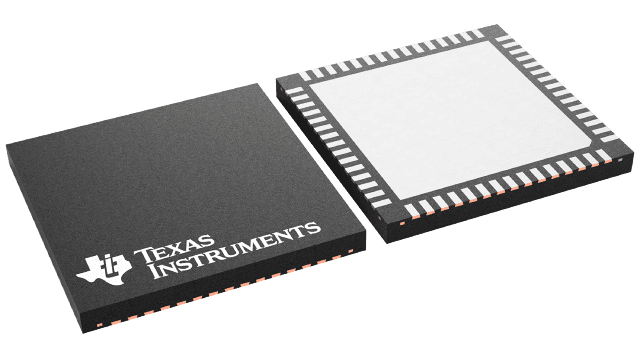

| Package / Case | WQFN-60 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | DS42BR400 |
| Brand | Texas Instruments |
| Development Kit | DS42BR400-EVK |
| Moisture Sensitive | Yes |
| Operating Supply Current | 375.18 mA |
| Product Type | Bus Transceivers |
| Factory Pack Quantity | 250 |
| Subcategory | Logic ICs |
| Unit Weight | 0.007626 oz |
For more information, please refer to datasheet
Documents
| DS42BR400TSQ/NOPB Datasheet |
More Information
The DS42BR400 is a quad 250 Mbps – 4.25 Gbps CML transceiver, or 8-channel buffer, for use in backplane and cable applications. With operation down to 250 Mbps, the DS42BR400 can be used in applications requiring both low and high frequency data rates. Each input stage has a fixed equalizer to reduce ISI distortion from board traces. The equalizers are grouped in fours and are enabled through two control pins. These control pins provide customers flexibility where ISI distortion may vary from one direction to another.
