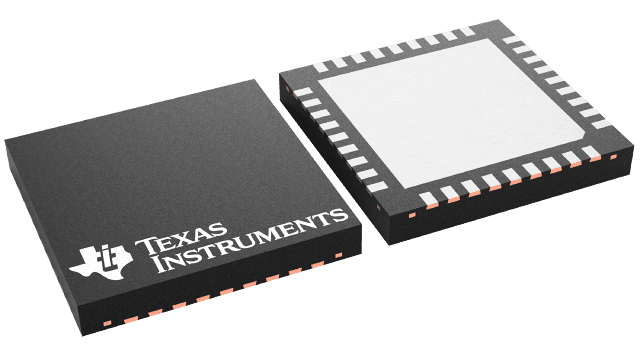

DS42MB100TSQ/NOPB Texas Instruments - Yeehing Electronics
4.25-Gbps 2:1/1:2 CML mux/buffer with transmit pre-emphasis and receive equalization
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.566 |
| 100 — 249 | 6.609 |
| 250 — 999 | 5.096 |
| 1,000 + | 3.19 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Buffers & Line Drivers |
| RoHS | Y |
| Number of Input Lines | 6 Input |
| Number of Output Lines | 6 Output |
| Polarity | Non-Inverting |
| Supply Voltage - Max | 3.465 V |
| Supply Voltage - Min | 3.135 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-36 |
| Packaging | Reel |
| Data Rate | 4250 Mb/s |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | CML |
| Series | DS42MB100 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 136 mA |
| Product Type | Buffers & Line Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | Logic ICs |
| Unit Weight | 0.003101 oz |
For more information, please refer to datasheet
Documents
| DS42MB100TSQ/NOPB Datasheet |
More Information
The DS42MB100 device is a signal conditioning 2:1 multiplexer and 1:2 fan-out buffer designed for use in backplane-redundancy or cable driving applications. Signal conditioning features include continuous time linear equalization (CTLE) and programmable output pre-emphasis that enable data communication in FR4 backplane up to 4.25 Gbps. Each input stage has a fixed equalizer to reduce ISI distortion from board traces.
