Texas Instruments
DS80EP100SD/NOPB
DS80EP100SD/NOPB
Regular price
$0.53 USD
Regular price
Sale price
$0.53 USD
Unit price
per
Couldn't load pickup availability
DS80EP100SD/NOPB Texas Instruments - Yeehing Electronics
5 to 12.5-Gbps, power-saver equalizer for backplanes and cables
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.866 |
| 100 — 249 | 1.635 |
| 250 — 999 | 1.147 |
| 1,000 + | 0.53 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Equalizers |
| RoHS | Y |

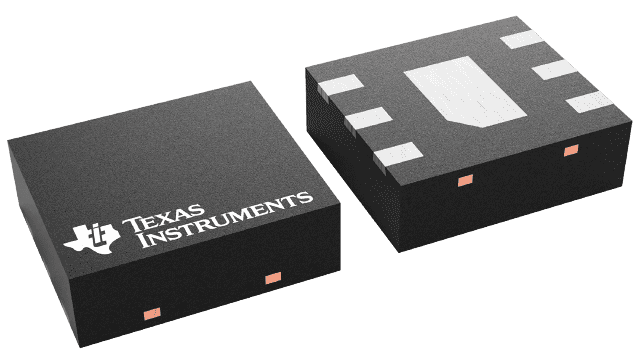

| Package / Case | WSON-6 |
| Data Rate | 12.5 Gb/s |
| Operating Supply Current | 0 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | DS80EP100 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Number of Drivers | 1 Driver |
| Number of Receivers | 1 Receiver |
| Product Type | Equalizers |
| Factory Pack Quantity | 1000 |
| Subcategory | Equalizers |
| Unit Weight | 0.000342 oz |
For more information, please refer to datasheet
Documents
| DS80EP100SD/NOPB Datasheet |
More Information
TI’s Power-saver equalizer compensates for transmission medium losses and minimizes medium-induced deterministic jitter. Performance is guaranteed over the full range of 5 to 12.5 Gbps. The DS80EP100 requires no power to operate. The equalizer operates anywhere in the data path to minimize media-induced deterministic jitter in both FR4 traces and cable applications. Symmetric I/O structures support full duplex or half duplex applications. Linear compensation is provided independent of line coding or protocol. The device is ideal for both bi-level and multi-level signaling.
