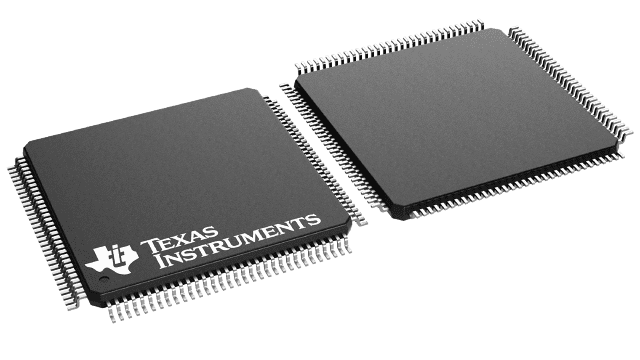

DS90C3201VS/NOPB Texas Instruments - Yeehing Electronics

3.3V 8 MHz to 135 MHz Dual FPD-Link Transmitter

Pricing (USD)

Quantity	Unit Price
1 — 99	5.829
100 — 249	4.752
250 — 999	3.735
1,000 +	2.22

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	0
Maximum Operating Temperature	70
Factory Pack Quantity	90
Package | Pins	TQFP (PDT) | 128

For more information, please refer to datasheet

Documents

DS90C3201VS/NOPB Datasheet

More Information

The DS90C3201 is a 3.3V single/dual FPD-Link 10-bit color transmitter is designed to be used in Liquid Crystal Display TVs, LCD Monitors, Digital TVs, and Plasma Display Panel TVs. The DS90C3201 is designed to interface between the digital video processor and the display device using the low-power, low-EMI LVDS (Low Voltage Differential Signaling) interface. The DS90C3201 converts up to 70 bits of LVCMOS/LVTTL data into ten LVDS data streams. The transmitter can be programmed clocking data with rising edge or falling edge clock. Optional two-wire serial programming allows fine tuning in development and production environments. At a transmitted clock frequency of 135 MHz, 70 bits of LVCMOS/LVTTL data are transmitted at an effective rate of 945 Mbps per LVDS channel. Using a 135 MHz clock, the data throughput is 9.45Gbit/s (945Mbytes/s). This allows the dual 10-bit LVDS Transmitter to support HDTV resolutions.
