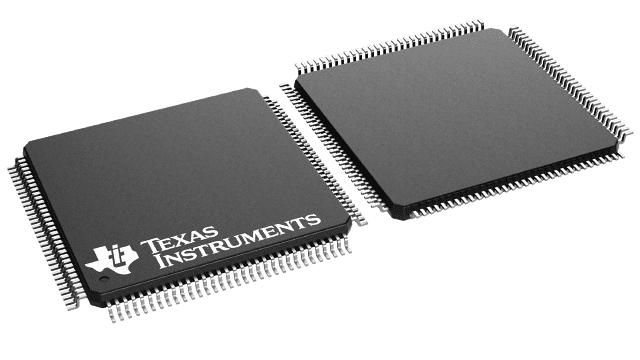

DS90C3202VS/NOPB Texas Instruments - Yeehing Electronics

3.3V 8 MHz to 135 MHz Dual FPD-Link Receiver

Pricing (USD)

Quantity	Unit Price
1 — 99	4.416
100 — 249	3.6
250 — 999	2.83
1,000 +	1.68

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Display Interface IC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TQFP-128
Series	DS90C3202
Type	Receiver
Maximum Operating Frequency	135 MHz
Operating Supply Voltage	3.3 V
Operating Supply Current	2 mA
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Packaging	Tray
Brand	Texas Instruments
Development Kit	FLINK3V10BT-TX
Moisture Sensitive	Yes
Product Type	Display Interface IC
Factory Pack Quantity	90
Subcategory	Interface ICs
Unit Weight	0.017760 oz

For more information, please refer to datasheet

Documents

DS90C3202VS/NOPB Datasheet

More Information

The DS90C3202 is a 3.3V single/dual FPD-Link 10-bit color receiver is designed to be used in Liquid Crystal Display TVs, LCD Monitors, Digital TVs, and Plasma Display Panel TVs. The DS90C3202 is designed to interface between the digital video processor and the display device using the low-power, low-EMI LVDS (Low Voltage Differential Signaling) interface. The DS90C3202 converts up to ten LVDS data streams back into 70 bits of parallel LVCMOS/LVTTL data. The receiver can be programmed with rising edge or falling edge clock. Optional wo-wire serial programming allows fine tuning in development and production environments. With an input clock at 135 MHz, the maximum transmission rate of each LVDS line is 945 Mbps, for an aggregate throughput rate of 9.45 Gbps (945 Mbytes/s). This allows the dual 10-bit LVDS Receiver to support resolutions up to HDTV.
