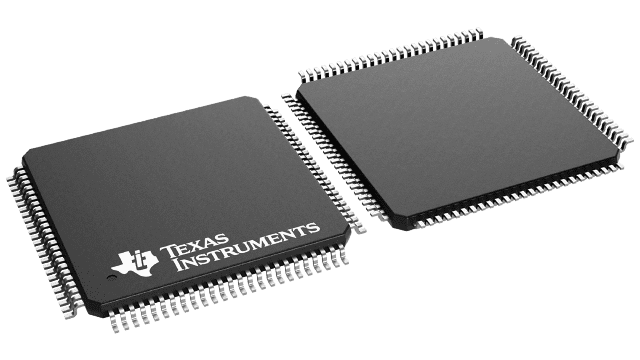

DS90C387VJD/NOPB Texas Instruments - Yeehing Electronics

+3.3V Dual Pixel LVDS Display Interface (LDI)-SVGA/QXGA Transmitter

Pricing (USD)

Quantity	Unit Price
1 — 99	8.666
100 — 249	7.065
250 — 999	5.553
1,000 +	3.30

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LVDS Interface IC
RoHS	Y
Type	LVDS
Number of Drivers	8 Driver
Number of Receivers	48 Receiver
Data Rate	5380 Mb/s
Input Type	CMOS, TTL
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Minimum Operating Temperature	- 10 C
Maximum Operating Temperature	+ 70 C
Mounting Style	SMD/SMT
Package / Case	TQFP-100
Packaging	Tray
Height	1 mm
Input Voltage MAX	100 mV
Length	14 mm
Series	DS90C387
Width	14 mm
Brand	Texas Instruments
Development Kit	LDI3V8BT-112
Input Voltage MIN	- 100 mV
Maximum Output Voltage	450 mV
Moisture Sensitive	Yes
Operating Supply Voltage	3.3 V
Pd - Power Dissipation	2.8 W
Product Type	LVDS Interface IC
Factory Pack Quantity	90
Subcategory	Interface ICs
Unit Weight	0.023175 oz

For more information, please refer to datasheet

Documents

DS90C387VJD/NOPB Datasheet

More Information

The DS90C387/DS90CF388 transmitter/receiver pair is designed to support dual pixel data transmission between Host and Flat Panel Display up to QXGA resolutions. The transmitter converts 48 bits (Dual Pixel 24-bit color) of CMOS/TTL data into 8 LVDS (Low Voltage Differential Signalling) data streams. Control signals (VSYNC, HSYNC, DE and two user-defined signals) are sent during blanking intervals. At a maximum dual pixel rate of 112MHz, LVDS data line speed is 672Mbps, providing a total throughput of 5.38Gbps (672 Megabytes per second). Two other modes are also supported. 24-bit color data (single pixel) can be clocked into the transmitter at a maximum rate of 170MHz. In this mode, the transmitter provides single-to-dual pixel conversion, and the output LVDS clock rate is 85MHz maximum. The third mode provides inter-operability with FPD-Link devices.
