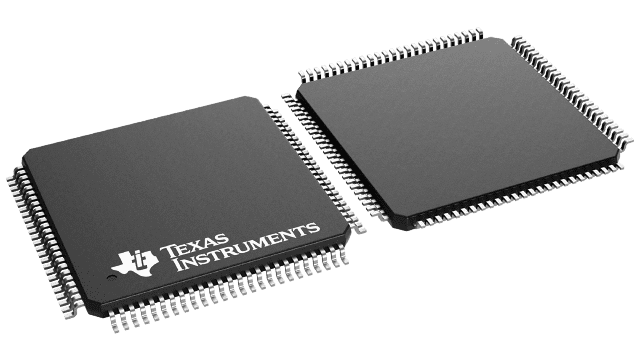

DS90C387VJDX/NOPB


YeeHing #: Y007-DS90C387VJDX/NOPB
Inventory: 4800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

DS90C387VJDX/NOPB Texas Instruments - Yeehing Electronics

+3.3V Dual Pixel LVDS Display Interface (LDI)-SVGA/QXGA Transmitter

Pricing (USD)

Quantity Unit Price
1 — 99 7.222
100 — 249 5.888
250 — 999 4.628
1,000 + 2.75

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category LVDS Interface IC
RoHS Y
Type LVDS
Number of Drivers 8 Driver
Number of Receivers 48 Receiver
Data Rate 5380 Mb/s
Input Type CMOS, TTL
Supply Voltage - Max 3.6 V
Supply Voltage - Min 3 V
Minimum Operating Temperature - 10 C
Maximum Operating Temperature + 70 C
Mounting Style SMD/SMT
Package / Case TQFP-100
Packaging Reel
Height 1 mm
Input Voltage MAX 100 mV
Length 14 mm
Series DS90C387
Width 14 mm
Brand Texas Instruments
Development Kit LDI3V8BT-112
Input Voltage MIN - 100 mV
Maximum Output Voltage 450 mV
Moisture Sensitive Yes
Operating Supply Voltage 3.3 V
Pd - Power Dissipation 2.8 W
Product Type LVDS Interface IC
Factory Pack Quantity 1000
Subcategory Interface ICs
Unit Weight 0.023175 oz

For more information, please refer to datasheet

Documents

DS90C387VJDX/NOPB Datasheet

More Information

The DS90C387/DS90CF388 transmitter/receiver pair is designed to support dual pixel data transmission between Host and Flat Panel Display up to QXGA resolutions. The transmitter converts 48 bits (Dual Pixel 24-bit color) of CMOS/TTL data into 8 LVDS (Low Voltage Differential Signalling) data streams. Control signals (VSYNC, HSYNC, DE and two user-defined signals) are sent during blanking intervals. At a maximum dual pixel rate of 112MHz, LVDS data line speed is 672Mbps, providing a total throughput of 5.38Gbps (672 Megabytes per second). Two other modes are also supported. 24-bit color data (single pixel) can be clocked into the transmitter at a maximum rate of 170MHz. In this mode, the transmitter provides single-to-dual pixel conversion, and the output LVDS clock rate is 85MHz maximum. The third mode provides inter-operability with FPD-Link devices.
