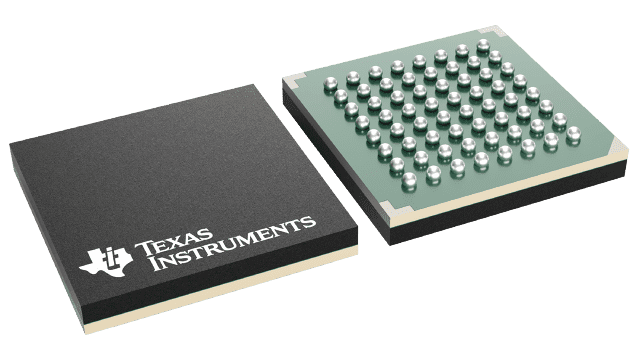

DS90CF386SLC/NOPB


YeeHing #: Y007-DS90CF386SLC/NOPB
Inventory: 2400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

DS90CF386SLC/NOPB Texas Instruments - Yeehing Electronics

+3.3V LVDS Receiver 24-Bit Flat Panel Display (FPD) Link - 85 MHz

Pricing (USD)

Quantity Unit Price
1 — 99 6.024
100 — 249 4.911
250 — 999 3.86
1,000 + 2.29

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category LVDS Interface IC
RoHS Y
Type CMOS, TTL
Number of Drivers 28 Driver
Number of Receivers 3 Receiver
Data Rate 2380 Mb/s
Input Type LVDS
Supply Voltage - Max 3.6 V
Supply Voltage - Min 3 V
Minimum Operating Temperature - 10 C
Maximum Operating Temperature + 70 C
Mounting Style SMD/SMT
Package / Case FBGA-64
Packaging Tray
Height 1.04 mm
Input Voltage MAX 100 mV
Length 8 mm
Series DS90CF386
Width 8 mm
Brand Texas Instruments
Development Kit FLINK3V8BT-85/NOPB
Input Voltage MIN - 100 mV
Moisture Sensitive Yes
Operating Supply Voltage 3.3 V
Pd - Power Dissipation 1.61 W
Product Type LVDS Interface IC
Factory Pack Quantity 360
Subcategory Interface ICs
Unit Weight 0.014110 oz

For more information, please refer to datasheet

Documents

DS90CF386SLC/NOPB Datasheet

More Information

The DS90CF386 receiver converts four LVDS (Low Voltage Differential Signaling) data streams back into parallel 28 bits of LVCMOS data. Also available is the DS90CF366 receiver that converts three LVDS data streams back into parallel 21 bits of LVCMOS data. The outputs of both receivers strobe on the falling edge. A rising edge or falling edge strobe transmitter will interoperate with a falling edge strobe receiver without any translation logic.
