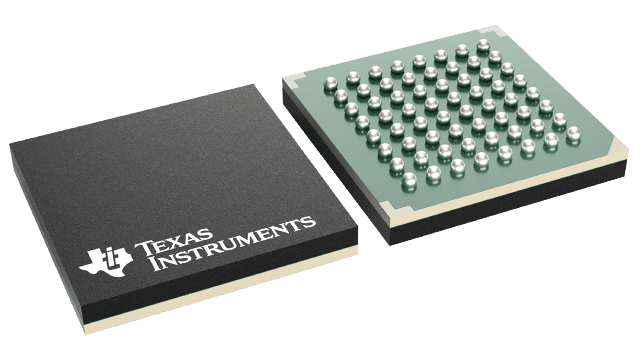

DS90CF386SLCX/NOPB Texas Instruments - Yeehing Electronics

+3.3V LVDS Receiver 24-Bit Flat Panel Display (FPD) Link - 85 MHz

Pricing (USD)

Quantity	Unit Price
1 — 99	5.02
100 — 249	4.092
250 — 999	3.216
1,000 +	1.91

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LVDS Interface IC
RoHS	Y
Type	CMOS, TTL
Number of Drivers	28 Driver
Number of Receivers	3 Receiver
Data Rate	2380 Mb/s
Input Type	LVDS
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Minimum Operating Temperature	- 10 C
Maximum Operating Temperature	+ 70 C
Mounting Style	SMD/SMT
Package / Case	FBGA-64
Packaging	Reel
Height	1.04 mm
Input Voltage MAX	0.1 V
Length	8 mm
Series	DS90CF386
Width	8 mm
Brand	Texas Instruments
Development Kit	FLINK3V8BT-85/NOPB
Input Voltage MIN	- 0.1 V
Moisture Sensitive	Yes
Operating Supply Voltage	3.3 V
Pd - Power Dissipation	1610 mW
Product Type	LVDS Interface IC
Factory Pack Quantity	2000
Subcategory	Interface ICs
Unit Weight	0.014110 oz

For more information, please refer to datasheet

Documents

DS90CF386SLCX/NOPB Datasheet

More Information

The DS90CF386 receiver converts four LVDS (Low Voltage Differential Signaling) data streams back into parallel 28 bits of LVCMOS data. Also available is the DS90CF366 receiver that converts three LVDS data streams back into parallel 21 bits of LVCMOS data. The outputs of both receivers strobe on the falling edge. A rising edge or falling edge strobe transmitter will interoperate with a falling edge strobe receiver without any translation logic.
