Texas Instruments
DS90CP04TLQ/NOPB
DS90CP04TLQ/NOPB
Regular price
$4.36 USD
Regular price
Sale price
$4.36 USD
Unit price
per
Couldn't load pickup availability

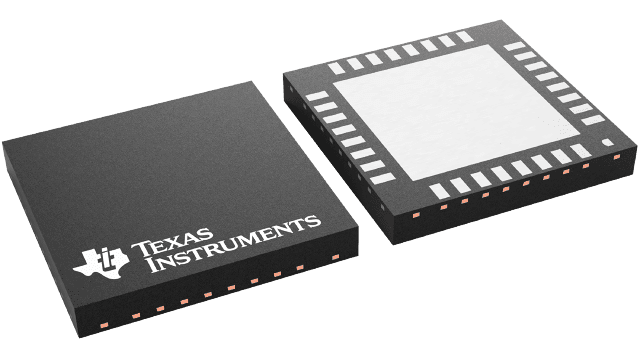

DS90CP04TLQ/NOPB Texas Instruments - Yeehing Electronics
1.5-Gbps 4x4 LVDS crosspoint switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.05 |
| 100 — 249 | 7.905 |
| 250 — 999 | 6.095 |
| 1,000 + | 4.36 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog & Digital Crosspoint ICs |
| RoHS | Y |
| Series | DS90CP04 |
| Product | Digital Crosspoint Switches |
| Configuration | 4 x 4 |
| Data Rate | 1.5 Gb/s |
| Input Type | LVDS |
| Output Type | LVDS |
| Operating Supply Voltage | 2.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-32 |
| Packaging | Reel |
| Supply Type | Single |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Analog & Digital Crosspoint ICs |
| Factory Pack Quantity | 250 |
| Subcategory | Communication & Networking ICs |
| Supply Voltage - Max | 2.625 V |
| Supply Voltage - Min | 2.375 V |
| Unit Weight | 0.002931 oz |
For more information, please refer to datasheet
Documents
| DS90CP04TLQ/NOPB Datasheet |
More Information
DS90CP04 is a 4x4 digital cross-point switch with broadside input and output pins for efficient board layout. It utilizes Low Voltage Differential Swing (LVDS) technology for low power, high-speed operation. Data paths are fully differential from input to output for low noise. The non-blocking architecture allows connections of any input to any output or outputs. The switch matrix consists of four differential 4:1 multiplexes. Each output channel connects to one of the four inputs common to all multiplexers.
