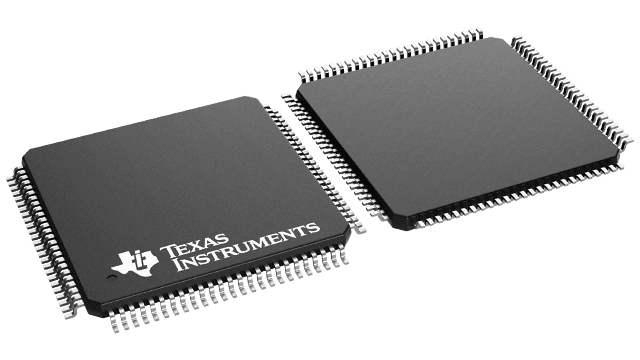

DS90CR481VJD/NOPB Texas Instruments - Yeehing Electronics

48-Bit LVDS Channel Link Serializer - 65 - 112 MHz

Pricing (USD)

Quantity	Unit Price
1 — 99	11.57
100 — 249	10.107
250 — 999	7.792
1,000 +	4.88

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LVDS Interface IC
RoHS	Y
Type	LVDS
Number of Drivers	8 Driver
Number of Receivers	48 Receiver
Data Rate	672 Mb/s
Input Type	CMOS, TTL
Output Type	LVDS
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Minimum Operating Temperature	- 10 C
Maximum Operating Temperature	+ 70 C
Mounting Style	SMD/SMT
Package / Case	TQFP-100
Packaging	Reel
Height	1 mm
Length	14 mm
Series	DS90CR481
Width	14 mm
Brand	Texas Instruments
Maximum Output Voltage	450 mV
Moisture Sensitive	Yes
Operating Supply Voltage	3.3 V
Pd - Power Dissipation	2.3 W
Product Type	LVDS Interface IC
Factory Pack Quantity	90
Subcategory	Interface ICs
Unit Weight	0.023175 oz

For more information, please refer to datasheet

Documents

DS90CR481VJD/NOPB Datasheet

More Information

The DS90CR481 transmitter converts 48 bits of CMOS/TTL data into eight LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a ninth LVDS link. Every cycle of the transmit clock 48 bits of input data are sampled and transmitted. The DS90CR482 receiver converts the LVDS data streams back into 48 bits of LVCMOS/TTL data. At a transmit clock frequency of 112MHz, 48 bits of TTL data are transmitted at a rate of 672Mbps per LVDS data channel. Using a 112MHz clock, the data throughput is 5.38Gbit/s (672Mbytes/s). At a transmit clock frequency of 112MHz, 48 bits of TTL data are transmitted at a rate of 672Mbps per LVDS data channel. Using a 66MHz clock, the data throughput is 3.168Gbit/s (396Mbytes/s).
