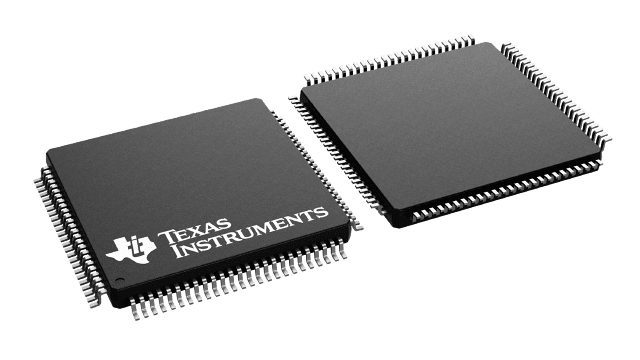

DS90CR484AVJD/NOPB Texas Instruments - Yeehing Electronics

48-bit LVDS channel link deserializer with input clock support from 33 MHz to 112 MHz

Pricing (USD)

Quantity	Unit Price
1 — 99	15.307
100 — 249	13.37
250 — 999	10.309
1,000 +	7.38

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LVDS Interface IC
RoHS	Y
Type	CMOS, TTL
Number of Drivers	48 Driver
Number of Receivers	8 Receiver
Data Rate	672 Mb/s
Input Type	LVDS
Output Type	LVCMOS
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Minimum Operating Temperature	- 10 C
Maximum Operating Temperature	+ 70 C
Mounting Style	SMD/SMT
Package / Case	TQFP-100
Packaging	Tray
Height	1 mm
Input Voltage MAX	100 mV
Length	14 mm
Series	DS90CR484A
Width	14 mm
Brand	Texas Instruments
Input Voltage MIN	- 100 mV
Maximum Output Voltage	450 mV
Moisture Sensitive	Yes
Operating Supply Voltage	3.3 V
Pd - Power Dissipation	2.3 W
Product Type	LVDS Interface IC
Factory Pack Quantity	90
Subcategory	Interface ICs
Unit Weight	0.023175 oz

For more information, please refer to datasheet

Documents

DS90CR484AVJD/NOPB Datasheet

More Information

The DS90CR483A transmitter converts 48 bits of CMOS/TTL data into eight LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a ninth LVDS link. Every cycle of the transmit clock 48 bits of input data are sampled and transmitted. The DS90CR484A receiver converts the LVDS data streams back into 48 bits of CMOS/TTL data. At a transmit clock frequency of 112MHz, 48 bits of TTL data are transmitted at a rate of 672Mbps per LVDS data channel. Using a 112MHz clock, the data throughput is 5.38Gbit/s (672Mbytes/s).
