Texas Instruments

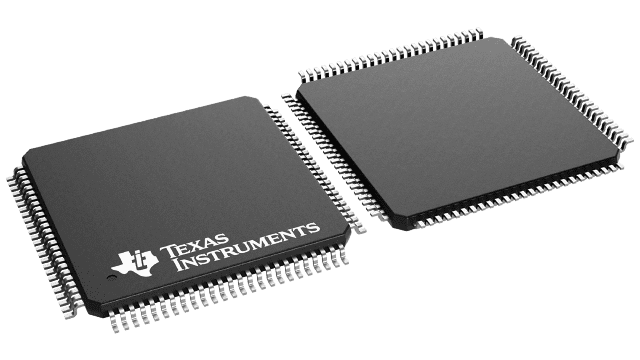

DS90CR486VSX/NOPB
DS90CR486VSX/NOPB
Regular price
$5.72 USD
Regular price
Sale price
$5.72 USD
Unit price
per
Couldn't load pickup availability
DS90CR486VSX/NOPB Texas Instruments - Yeehing Electronics
133-MHz 48-bit Channel Link deserializer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 13.556 |
| 100 — 249 | 11.841 |
| 250 — 999 | 9.13 |
| 1,000 + | 5.72 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Serializers & Deserializers - Serdes |
| RoHS | Y |
| Type | Deserializer |
| Data Rate | 6384 Mb/s |
| Input Type | LVDS |
| Output Type | LVCMOS |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | - 10 C |
| Maximum Operating Temperature | + 70 C |
| Mounting Style | SMD/SMT |
| Package / Case | TQFP-100 |
| Packaging | Reel |
| Height | 1 mm |
| Length | 14 mm |
| Series | DS90CR486 |
| Width | 14 mm |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 2900 mW |
| Product Type | Serializers & Deserializers - Serdes |
| Factory Pack Quantity | 1000 |
| Subcategory | Interface ICs |
| Supply Voltage - Max | 3.46 V |
| Supply Voltage - Min | 3.14 V |
| Unit Weight | 0.023175 oz |
For more information, please refer to datasheet
Documents
| DS90CR486VSX/NOPB Datasheet |
More Information
The DS90CR486 receiver converts eight Low Voltage Differential Signaling (LVDS) data streams back into 48 bits of LVCMOS/LVTTL data. Using a 133MHz clock, the data throughput is 6.384Gbit/s (798Mbytes/s).
