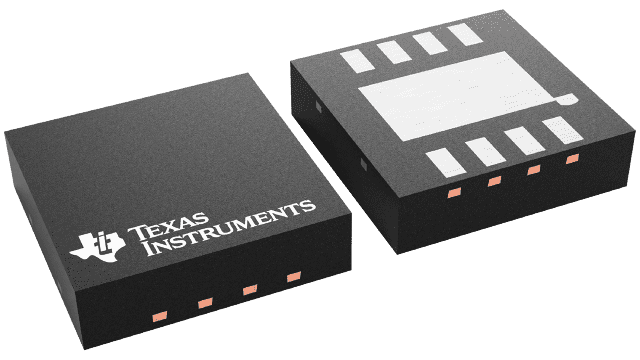

DS90LV001TLD/NOPB Texas Instruments - Yeehing Electronics

800-Mbps LVDS buffer

Pricing (USD)

Quantity	Unit Price
1 — 99	1.799
100 — 249	1.486
250 — 999	1.067
1,000 +	0.46

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LVDS Interface IC
RoHS	Y
Type	LVDS
Number of Drivers	1 Driver
Number of Receivers	1 Receiver
Data Rate	800 Mb/s
Input Type	LVDS, LVPECL
Output Type	LVDS
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	LLP-8
Packaging	Reel
Height	0.8 mm
Input Voltage MAX	0.1 V
Length	3 mm
Series	DS90LV001
Width	3 mm
Brand	Texas Instruments
Development Kit	LVDS001EVK
Input Voltage MIN	- 0.1 V
Maximum Output Voltage	0.45 V
Moisture Sensitive	Yes
Operating Supply Current	70 mA
Operating Supply Voltage	3.3 V
Pd - Power Dissipation	726 mW
Product Type	LVDS Interface IC
Propagation Delay Time	2 ns
Factory Pack Quantity	1000
Subcategory	Interface ICs
Unit Weight	0.000684 oz

For more information, please refer to datasheet
