Description

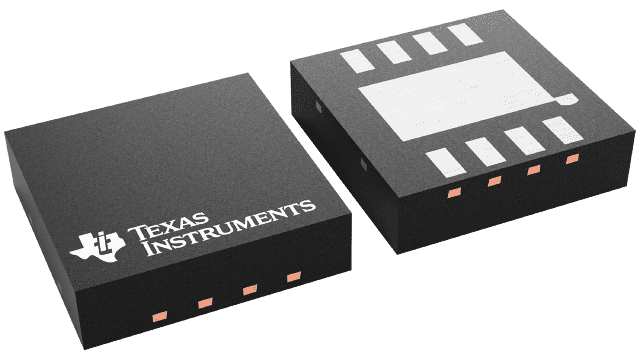

DS90LV001TLDX/NOPB Texas Instruments - Yeehing Electronics
800-Mbps LVDS buffer
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.499 |
100 — 249 | 1.238 |
250 — 999 | 0.889 |
1,000 + | 0.46 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LVDS Interface IC |
RoHS | Y |
Type | LVDS |
Number of Drivers | 1 Driver |
Number of Receivers | 1 Receiver |
Data Rate | 800 Mb/s |
Input Type | LVDS, LVPECL |
Output Type | LVDS |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 3 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Package / Case | LLP-8 |
Packaging | Reel |
Height | 0.8 mm |
Input Voltage MAX | 100 mV |
Length | 3 mm |
Series | DS90LV001 |
Width | 3 mm |
Brand | Texas Instruments |
Development Kit | LVDS001EVK |
Input Voltage MIN | - 100 mV |
Maximum Output Voltage | 450 mV |
Moisture Sensitive | Yes |
Operating Supply Current | 70 mA |
Operating Supply Voltage | 3.3 V |
Pd - Power Dissipation | 726 mW |
Product Type | LVDS Interface IC |
Propagation Delay Time | 2 ns |
Factory Pack Quantity | 4500 |
Subcategory | Interface ICs |
For more information, please refer to datasheet
Documents
DS90LV001TLDX/NOPB Datasheet |
