DS90UB913QSQ/NOPB Texas Instruments - Yeehing Electronics

10-MHz to 100-MHz 10/12-bit FPD-Link III serializer

Pricing (USD)

Quantity	Unit Price
1 — 99	8.814
100 — 249	7.185
250 — 999	5.647
1,000 +	2.74

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-40
Maximum Operating Temperature	105
Factory Pack Quantity	1,000

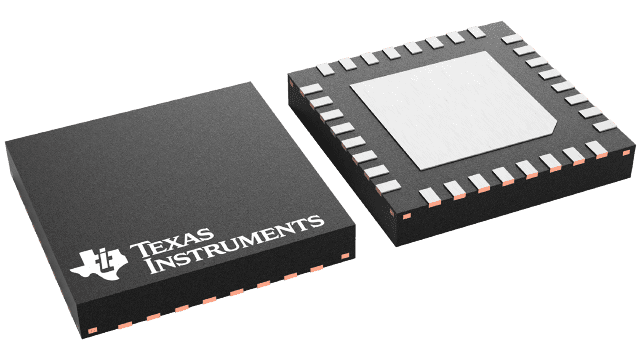

Package | Pins	WQFN (RTV) | 32

For more information, please refer to datasheet

Documents

DS90UB913QSQ/NOPB Datasheet

More Information

The DS90UB91xQ-Q1 chipset offers an FPD-Link III interface with a high-speed forward channel and a bidirectional control channel for data transmission over a single differential pair. The DS90UB91xQ-Q1 chipsets incorporate differential signaling on both the high-speed forward channel and bidirectional control channel data paths. The serializer and deserializer pair is targeted for connections between imagers and video processors in an electronic control unit (ECU). This chipset is ideally suited for driving video data that requires up to 12-bit pixel depth plus two synchronization signals along with bidirectional control channel bus.
