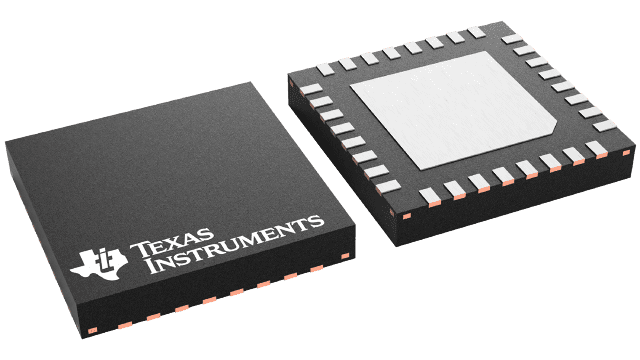

DS90UB933TRTVRQ1


YeeHing #: Y007-DS90UB933TRTVRQ1
Inventory: 8800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

DS90UB933TRTVRQ1 Texas Instruments - Yeehing Electronics

12-bit 100 MHz FPD-Link III Serializer for 1MP/60fps and 2MP/30fps Cameras

Pricing (USD)

Quantity Unit Price
1 — 99 6.315
100 — 249 5.148
250 — 999 4.046
1,000 + 2.40

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Serializers & Deserializers - Serdes
RoHS Y
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Mounting Style SMD/SMT
Package / Case WQFN-32
Qualification AEC-Q100
Packaging Reel
Series DS90UB933-Q1
Brand Texas Instruments
Moisture Sensitive Yes
Product Type Serializers & Deserializers - Serdes
Factory Pack Quantity 2500
Subcategory Interface ICs
Unit Weight 0.001411 oz

For more information, please refer to datasheet

Documents

DS90UB933TRTVRQ1 Datasheet

More Information

The DS90UB933-Q1 device offers an FPD-Link III interface with a high-speed forward channel and a bidirectional control channel for data transmission over a single coaxial cable or differential pair. The DS90UB933-Q1 device incorporates differential signaling on both the high-speed forward channel and bidirectional control channel data paths. The serializer/deserializer pair is targeted for connections between imagers and video processors in an electronic control unit (ECU). This device is ideally suited for driving video data requiring up to 12-bit pixel depth plus two synchronization signals along with bidirectional control channel bus.
