Texas Instruments
DS90UB948TNKDTQ1
DS90UB948TNKDTQ1
Couldn't load pickup availability
DS90UB948TNKDTQ1 Texas Instruments - Yeehing Electronics
1080p oLDI Dual FPD-Link III Deserializer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 13.673 |
| 100 — 249 | 11.944 |
| 250 — 999 | 9.209 |
| 1,000 + | 5.77 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Serializers & Deserializers - Serdes |
| RoHS | Y |
| Type | Deserializer |
| Data Rate | 5.95 Gb/s |
| Input Type | FPD-Link III, LVDS |
| Output Type | LVDS |
| Number of Inputs | 2 Input |
| Number of Outputs | 10 Output |
| Operating Supply Voltage | 1.2 V, 1.8 V, 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |

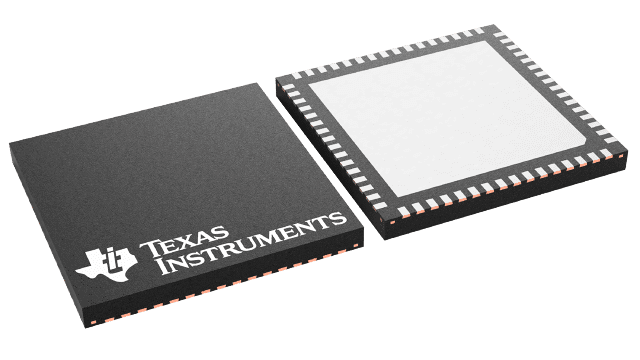

| Package / Case | WQFN-64 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Series | DS90UB948-Q1 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 14 mA, 168 mA, 169 mA |
| Product Type | Serializers & Deserializers - Serdes |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.14 V |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| DS90UB948TNKDTQ1 Datasheet |
More Information
The DS90UB948-Q1 is a FPD-Link III deserializer which, in conjunction with the DS90UB949A/949/947-Q1 serializers, converts 1-lane or 2-lane FPD-Link III streams into a FPD-Link (OpenLDI) interface. The Deserializer is capable of operating over cost-effective 50-Ω single-ended coaxial or 100-Ω differential shielded twisted-pair (STP) cables. It recovers the data from one or two FPD-Link III serial streams and translates it into dual pixel FPD-Link (8 LVDS data lanes + clock) supporting video resolutions up to 2K (2048x1080) with 24-bit color depth. This provides a bridge between HDMI enabled sources such as GPUs to connect to existing LVDS displays or application processors.
