Texas Instruments
DS90UB949TRGCTQ1
DS90UB949TRGCTQ1
Regular price
$6.58 USD
Regular price
Sale price
$6.58 USD
Unit price
per
Couldn't load pickup availability
DS90UB949TRGCTQ1 Texas Instruments - Yeehing Electronics
1080p HDMI to FPD-Link III bridge serializer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 15.601 |
| 100 — 249 | 13.627 |
| 250 — 999 | 10.507 |
| 1,000 + | 6.58 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Serializers & Deserializers - Serdes |
| RoHS | Y |
| Type | Serializer |
| Data Rate | 5.95 Gb/s |
| Input Type | CML, LVCMOS |
| Output Type | FPD-Link III, LVDS |
| Number of Inputs | 4 Input |
| Number of Outputs | 2 Output |
| Operating Supply Voltage | 1.1 V, 1.8 V, 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |

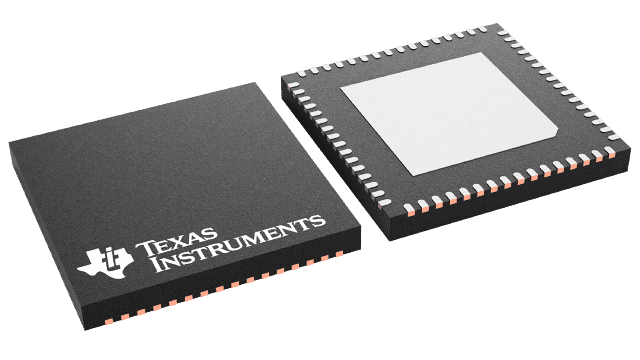

| Package / Case | VQFN-64 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Series | DS90UB949-Q1 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 50 mA, 330 mA |
| Product Type | Serializers & Deserializers - Serdes |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Supply Voltage - Max | 3.465 V |
| Supply Voltage - Min | 1.045 V |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| DS90UB949TRGCTQ1 Datasheet |
More Information
The DS90UB949-Q1 is an HDMI to FPD-Link III bridge device which, in conjunction with the FPD-Link III DS90UB940-Q1/DS90UB948-Q1 deserializers, supplies 1-lane or 2-lane high-speed serial streams over cost-effective 50-Ω single-ended coaxial or 100-Ω differential shielded twisted-pair (STP) cables. It serializes an HDMI v1.4b input supporting video resolutions up to WUXGA and 1080p60 with 24-bit color depth.
