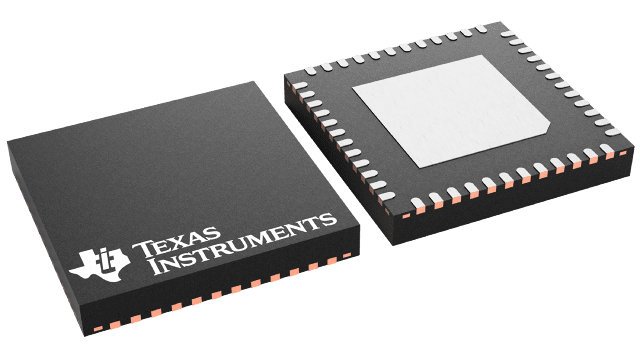

DS90UB954TRGZTQ1 Texas Instruments - Yeehing Electronics
Dual 2 MP FPD-Link III deserializer with CSI-2 outputs for 2MP/60fps cameras & radar
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 28.22 |
| 100 — 249 | 24.65 |
| 250 — 999 | 19.006 |
| 1,000 + | 8.64 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Serializers & Deserializers - Serdes |
| RoHS | Y |
| Type | Deserializer |
| Data Rate | 1664 Mb/s |
| Input Type | LVCMOS |
| Output Type | LVCMOS |
| Number of Inputs | 2 Input |
| Number of Outputs | 2 Output |
| Operating Supply Voltage | 1.8 V, 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-48 |
| Packaging | Reel |
| Product | Deserializers |
| Series | DS90UB954-Q1 |
| Brand | Texas Instruments |
| Development Kit | DS90UB954-Q1EVM |
| Moisture Sensitive | Yes |
| Operating Supply Current | 240 mA |
| Pd - Power Dissipation | 564 mW |
| Product Type | Serializers & Deserializers - Serdes |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.71 V |
| Unit Weight | 0.004240 oz |
For more information, please refer to datasheet
Documents
| DS90UB954TRGZTQ1 Datasheet |
More Information
The DS90UB954-Q1 is a versatile dual deserializer hub capable of receiving serialized sensor data from one or two independent sources through an FPD-Link III interface. When paired with a DS90UB953-Q1 serializer, the DS90UB954-Q1 receives data from imagers, supporting 2MP/60fps and 4MP/30fps cameras as well as satellite RADAR and other sensors such as ToF and LIDAR. Data is received and aggregated into a MIPI CSI-2 compliant output for interconnect to a downstream processor. For sensors with DS90UB933-Q1 and DS90UB913A-Q1 serializers, the DS90UB954-Q1 receives and aggregates data from one or two sensors including Full HD 1080p 2MP 60/fps imager sensors. When configuring the CSI-2 interface for 2-lane operation, a duplicate MIPI CSI-2 clock lane is available to provide a replicated output. Replication mode creates two copies of the aggregated video stream for data logging and parallel processing.
