Description

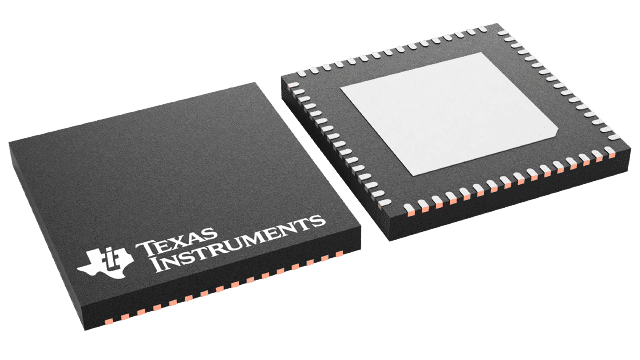

DS90UB964TRGCRQ1 Texas Instruments - Yeehing Electronics
Quad 1 MP camera hub FPD-Link III deserializer with dual CSI-2 output ports for 1 MP cameras
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 30.6 |
100 — 249 | 27.2 |
250 — 999 | 22.36 |
1,000 + | 13.71 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Serializers & Deserializers - Serdes |
RoHS | Y |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 105 C |
Mounting Style | SMD/SMT |
Package / Case | VQFN-64 |
Qualification | AEC-Q100 |
Packaging | Reel |
Series | DS90UB964-Q1 |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Product Type | Serializers & Deserializers - Serdes |
Factory Pack Quantity | 2000 |
Subcategory | Interface ICs |
For more information, please refer to datasheet
Documents
DS90UB964TRGCRQ1 Datasheet |
More Information
The DS90UB964-Q1 is a versatile camera hub capable of connecting serialized camera data received from 4 independent video datastreams via an FPD-Link III interface. When coupled with DS90UB913AQ/913Q/933Q serializers, the DS90UB964-Q1 receives data from 1-Megapixel image sensors supporting 720p/800p/960p resolution at 30-Hz or 60-Hz frame rates. Data is received and aggregated into a MIPI CSI-2 compliant output for interconnect to a downstream processor. A second MIPI CSI-2 output port is available to provide additional bandwidth, or offers a second replicated output.
