DS90UB964TRGCTQ1 Texas Instruments - Yeehing Electronics

Quad 1 MP camera hub FPD-Link III deserializer with dual CSI-2 output ports for 1 MP cameras

Pricing (USD)

Quantity	Unit Price
1 — 99	33.66
100 — 249	29.92
250 — 999	24.596
1,000 +	15.40

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Serializers & Deserializers - Serdes
RoHS	Y
Type	Deserializer
Data Rate	1.6 Gb/s
Input Type	LVDS
Output Type	CSI-2, MIPI
Number of Inputs	4 Input
Number of Outputs	2 Output
Operating Supply Voltage	1.1 V, 1.8 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Mounting Style	SMD/SMT

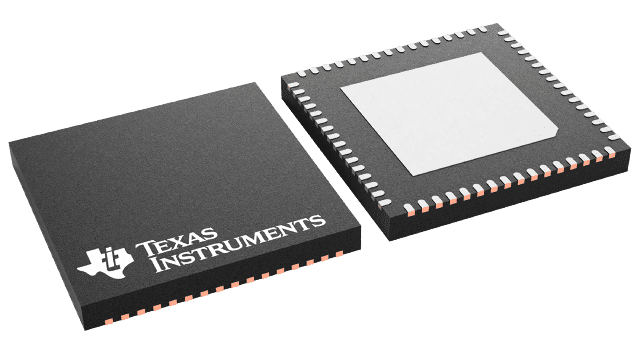

Package / Case	VQFN-64
Qualification	AEC-Q100
Packaging	Reel
Series	DS90UB964-Q1
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Serializers & Deserializers - Serdes
Factory Pack Quantity	250
Subcategory	Interface ICs
Supply Voltage - Max	1.89 V
Supply Voltage - Min	1.045 V
Unit Weight	0.006455 oz

For more information, please refer to datasheet

Documents

DS90UB964TRGCTQ1 Datasheet

More Information

The DS90UB964-Q1 is a versatile camera hub capable of connecting serialized camera data received from 4 independent video datastreams via an FPD-Link III interface. When coupled with DS90UB913AQ/913Q/933Q serializers, the DS90UB964-Q1 receives data from 1-Megapixel image sensors supporting 720p/800p/960p resolution at 30-Hz or 60-Hz frame rates. Data is received and aggregated into a MIPI CSI-2 compliant output for interconnect to a downstream processor. A second MIPI CSI-2 output port is available to provide additional bandwidth, or offers a second replicated output.
