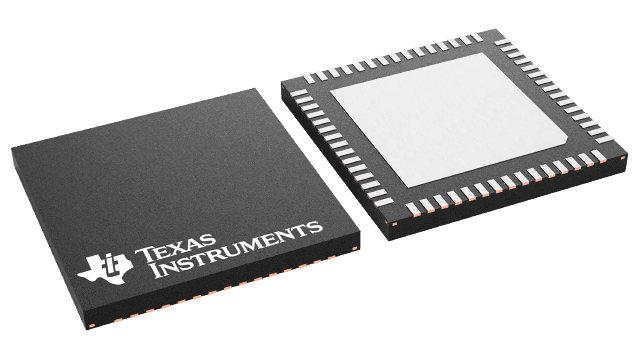

DS90UR906QSQE/NOPB Texas Instruments - Yeehing Electronics
5-MHz to 65-MHz 24-bit color FPD-Link II deserializer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.208 |
| 100 — 249 | 9.79 |
| 250 — 999 | 7.549 |
| 1,000 + | 4.73 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Display Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-60 |
| Series | DS90UR906Q-Q1 |
| Type | Deserializer |
| Maximum Operating Frequency | 65 MHz |
| Operating Supply Voltage | 1.8 V |
| Operating Supply Current | 40 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Reel |
| Features | 1.8V or 3.3V VDDIO, I2C Config |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Display Interface IC |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Unit Weight | 0.051218 oz |
For more information, please refer to datasheet
Documents
| DS90UR906QSQE/NOPB Datasheet |
More Information
The DS90UR90xQ-Q1 chipset translates a parallel RGB video interface into a high-speed serialized interface over a single pair. This serial bus scheme makes system design easy by eliminating skew problems between clock and data, reducing the number of connector pins, reducing the interconnect size, weight, cost, and easing overall PCB layout. In addition, internal DC-balanced decoding is used to support AC-coupled interconnects.
