Description

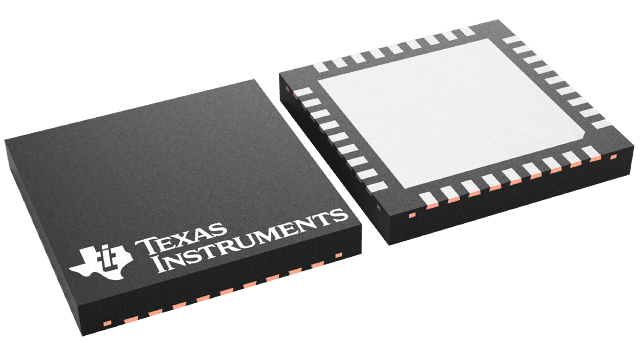

DS90UR907QSQ/NOPB Texas Instruments - Yeehing Electronics
5 - 65 MHz 24-bit Color FPD-Link to FPD-Link II Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.512 |
| 100 — 249 | 10.056 |
| 250 — 999 | 7.753 |
| 1,000 + | 5.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Display Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-36 |
| Series | DS90UR907Q-Q1 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Reel |
| Features | 1.8V or 3.3V VDDIO, I2C Config |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Display Interface IC |
| Factory Pack Quantity | 1000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.003873 oz |
For more information, please refer to datasheet
Documents
| DS90UR907QSQ/NOPB Datasheet |
More Information
The DS90UR907Q-Q1 converts FPD-Link to FPD-Link II. It translates four LVDS data/control streams and one LVDS clock pair (FPD-Link) into a high-speed serialized interface (FPD-Link II) over a single pair. This serial bus scheme greatly eases system design by eliminating skew problems between clock and data, reduces the number of connector pins, reduces the interconnect size, weight, and cost, and overall eases PCB layout. In addition, internal DC balanced encoding is used to support AC-coupled interconnects.
