Description

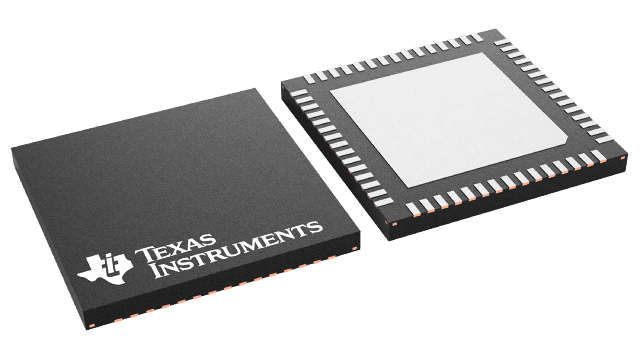

DS90UR916QSQ/NOPB Texas Instruments - Yeehing Electronics
5-65 MHz 24-bit Color FPD-Link II Deserializer with Image Enhancement
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.53 |
| 100 — 249 | 8.585 |
| 250 — 999 | 6.747 |
| 1,000 + | 4.01 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Display Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-60 |
| Series | DS90UR916Q-Q1 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Reel |
| Features | BIST, I2C Bus |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Display Interface IC |
| Factory Pack Quantity | 1000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.008579 oz |
For more information, please refer to datasheet
Documents
| DS90UR916QSQ/NOPB Datasheet |
More Information
The DS90UR916Q FPD-Link II deserializer operates with the DS90UR905Q FPD-Link II serializer to deliver 24-bit digital video data over a single differential pair. The DS90UR916Q provides features designed to enhance image quality at the display. The high speed serial bus scheme of FPD-Link II greatly eases system design by eliminating skew problems between clock and data, reduces the number of connector pins, reduces the interconnect size, weight, and cost, and overall eases PCB layout. In addition, internal DC balanced decoding is used to support AC-coupled interconnects.
