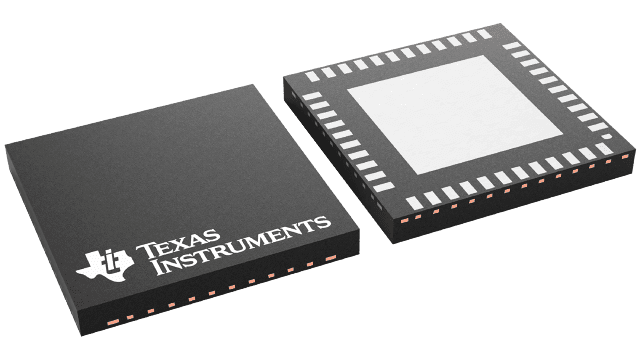

DS92LV040ATLQA/NOPB Texas Instruments - Yeehing Electronics

4-channel bus LVDS transceiver

Pricing (USD)

Quantity	Unit Price
1 — 99	6.451
100 — 249	5.259
250 — 999	4.134
1,000 +	2.45

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LVDS Interface IC
RoHS	Y
Type	LVDS, LVTTL
Number of Drivers	4 Driver
Number of Receivers	4 Receiver
Data Rate	155 Mb/s
Input Type	LVDS, LVTTL
Output Type	LVTTL, LVDS
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	LLP-44
Packaging	Reel
Height	0.8 mm
Length	7 mm
Series	DS92LV040A
Width	7 mm
Brand	Texas Instruments
Maximum Output Voltage	460 mV
Moisture Sensitive	Yes
Operating Supply Current	100 mA
Operating Supply Voltage	3.3 V
Pd - Power Dissipation	4.8 W
Product Type	LVDS Interface IC
Propagation Delay Time	2.3 ns
Factory Pack Quantity	250
Subcategory	Interface ICs
Unit Weight	0.003919 oz

For more information, please refer to datasheet

Documents

DS92LV040ATLQA/NOPB Datasheet

More Information

The DS92LV040A is one in a series of Bus LVDS transceivers designed specifically for high speed, low power backplane or cable interfaces. The device operates from a single 3.3-V power supply and includes four differential line drivers and four receivers. To minimize bus loading, the driver outputs and receiver inputs are internally connected. The device also features a flow through pin out which allows easy PCB routing for short stubs between its pins and the connector.
