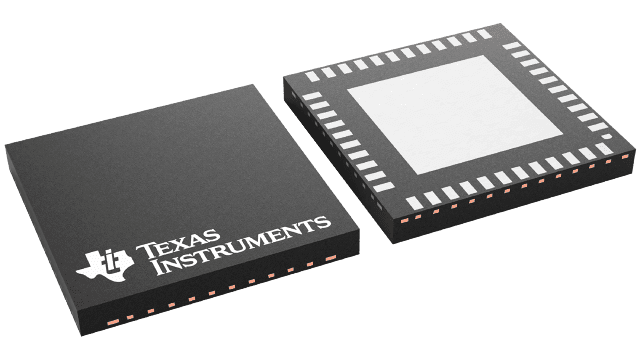

DS92LV040ATLQAX/NOPB Texas Instruments - Yeehing Electronics
4-channel bus LVDS transceiver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.376 |
| 100 — 249 | 4.383 |
| 250 — 999 | 3.445 |
| 1,000 + | 2.34 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LVDS Interface IC |
| RoHS | Y |
| Type | LVDS, LVTTL |
| Number of Drivers | 4 Driver |
| Number of Receivers | 4 Receiver |
| Data Rate | 155 Mb/s |
| Input Type | LVDS, LVTTL |
| Output Type | LVTTL, LVDS |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | LLP-44 |
| Packaging | Reel |
| Height | 0.8 mm |
| Length | 7 mm |
| Series | DS92LV040A |
| Width | 7 mm |
| Brand | Texas Instruments |
| Maximum Output Voltage | 460 mV |
| Moisture Sensitive | Yes |
| Operating Supply Current | 100 mA |
| Operating Supply Voltage | 3.3 V |
| Pd - Power Dissipation | 4.8 W |
| Product Type | LVDS Interface IC |
| Propagation Delay Time | 2.3 ns |
| Factory Pack Quantity | 2500 |
| Subcategory | Interface ICs |
For more information, please refer to datasheet
Documents
| DS92LV040ATLQAX/NOPB Datasheet |
More Information
The DS92LV040A is one in a series of Bus LVDS transceivers designed specifically for high speed, low power backplane or cable interfaces. The device operates from a single 3.3-V power supply and includes four differential line drivers and four receivers. To minimize bus loading, the driver outputs and receiver inputs are internally connected. The device also features a flow through pin out which allows easy PCB routing for short stubs between its pins and the connector.
