Description
DS92LV0411SQX/NOPB Texas Instruments - Yeehing Electronics
5 - 50 MHz Channel Link II Serializer with LVDS Parallel Interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.546 |
| 100 — 249 | 6.152 |
| 250 — 999 | 4.835 |
| 1,000 + | 2.87 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Serializers & Deserializers - Serdes |
| RoHS | Y |
| Type | Serializer |
| Data Rate | 1.4 Gb/s |
| Input Type | LVDS |
| Output Type | CML |
| Number of Inputs | 4 Input |
| Number of Outputs | 1 Output |
| Operating Supply Voltage | 1.7 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

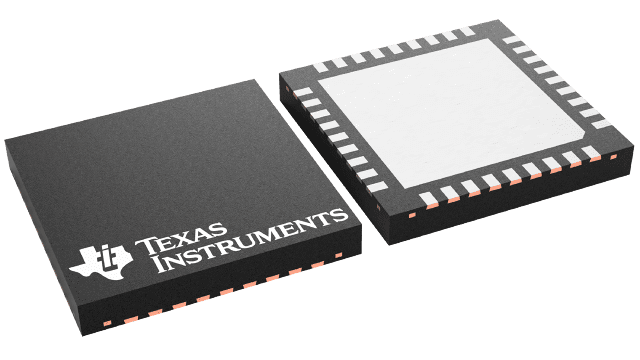

| Package / Case | WQFN-36 |
| Packaging | Reel |
| Series | DS92LV0411 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Serializers & Deserializers - Serdes |
| Factory Pack Quantity | 2500 |
| Subcategory | Interface ICs |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| DS92LV0411SQX/NOPB Datasheet |
More Information
The DS92LV0411 (serializer) and DS92LV0412 (deserializer) chipset translates a Channel Link LVDS video interface (4 LVDS Data + LVDS Clock) into a high-speed serialized interface over a single CML pair.
