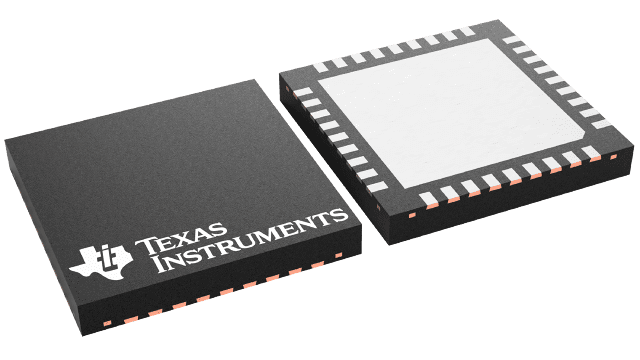

DS92LV0421SQE/NOPB Texas Instruments - Yeehing Electronics

10- to 75-MHz Channel-Link II serializer with LVDS parallel interface

Pricing (USD)

Quantity	Unit Price
1 — 99	10.325
100 — 249	9.019
250 — 999	6.954
1,000 +	4.35

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

DS92LV0421SQE/NOPB Datasheet

More Information

The DS92LV042x chipset translates a Channel Link LVDS video interface (4 LVDS Data + LVDS Clock) into a high-speed serialized interface over a single CML pair. The DS92LV042x enables applications currently using popular Channel Link or OpenLDI LVDS style devices to upgrade seamlessly to an embedded clock interface. This serial bus scheme reduces interconnect cost and eases design challenges. The parallel OpenLDI LVDS interface also reduces FPGA I/O pins, board trace count, and alleviates EMI issues when compared to traditional single-ended wide bus interfaces.
