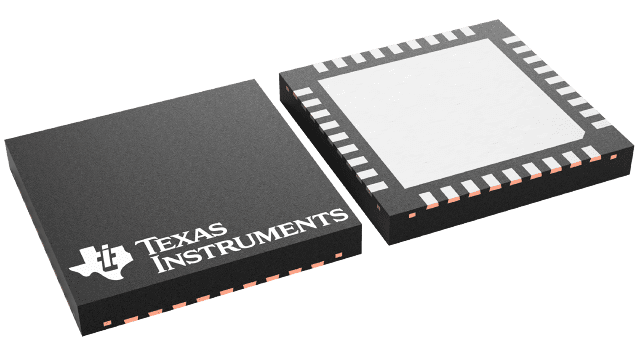

DS92LV0421SQX/NOPB Texas Instruments - Yeehing Electronics
10- to 75-MHz Channel-Link II serializer with LVDS parallel interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.604 |
| 100 — 249 | 7.515 |
| 250 — 999 | 5.795 |
| 1,000 + | 3.63 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Serializers & Deserializers - Serdes |
| RoHS | Y |
| Type | Serializer |
| Data Rate | 2.1 Gb/s |
| Input Type | LVDS |
| Output Type | CML |
| Number of Inputs | 4 Input |
| Number of Outputs | 1 Output |
| Operating Supply Voltage | 1.7 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-36 |
| Packaging | Reel |
| Series | DS92LV0421 |
| Brand | Texas Instruments |
| Development Kit | LV04EVK01/NOPB |
| Moisture Sensitive | Yes |
| Product Type | Serializers & Deserializers - Serdes |
| Factory Pack Quantity | 2500 |
| Subcategory | Interface ICs |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| DS92LV0421SQX/NOPB Datasheet |
More Information
The DS92LV042x chipset translates a Channel Link LVDS video interface (4 LVDS Data + LVDS Clock) into a high-speed serialized interface over a single CML pair. The DS92LV042x enables applications currently using popular Channel Link or OpenLDI LVDS style devices to upgrade seamlessly to an embedded clock interface. This serial bus scheme reduces interconnect cost and eases design challenges. The parallel OpenLDI LVDS interface also reduces FPGA I/O pins, board trace count, and alleviates EMI issues when compared to traditional single-ended wide bus interfaces.
