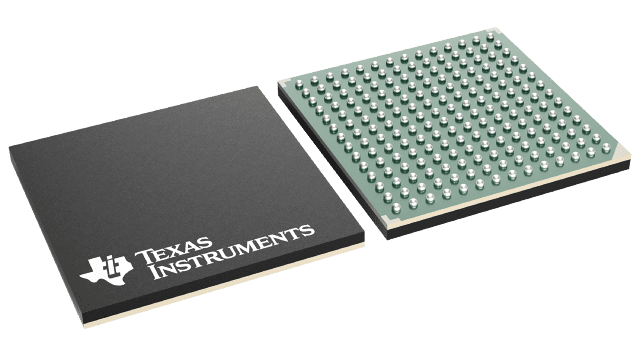

DS92LV1260TUJB/NOPB Texas Instruments - Yeehing Electronics
6-channel, 10-bit B-LVDS channel link deserializer
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 26.945 |
100 — 249 | 23.951 |
250 — 999 | 19.689 |
1,000 + | 12.33 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Serializers & Deserializers - Serdes |
RoHS | Y |
Type | Deserializer |
Data Rate | 480 Mb/s |
Input Type | LVCMOS, LVTTL |
Output Type | LVTTL |
Number of Inputs | 10 Input |
Number of Outputs | 1 Output |
Operating Supply Voltage | 3.3 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | LBGA-196 |
Packaging | Tray |
Height | 1.03 mm |
Input Current | 1 uA |
Length | 15 mm |
Series | DS92LV1260 |
Width | 15 mm |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Operating Supply Current | 530 mA |
Pd - Power Dissipation | 3.7 W |
Product Type | Serializers & Deserializers - Serdes |
Factory Pack Quantity | 119 |
Subcategory | Interface ICs |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 3 V |
For more information, please refer to datasheet
Documents
DS92LV1260TUJB/NOPB Datasheet |
More Information
The DS92LV1260 integrates six deserializer devices into a single chip. The chip uses a 0.25u CMOS process technology. The DS92LV1260 can simultaneously deserialize up to six data streams that have been serialized by the Texas Instruments DS92LV1021 or DS92LV1023 Bus LVDS serializers. The device also includes a seventh serial input channel that serves as a redundant input.
