DS92LV2412SQE/NOPB Texas Instruments - Yeehing Electronics
5-MHz to 50-MHz 24-bit Channel Link II deserializer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.239 |
| 100 — 249 | 7.196 |
| 250 — 999 | 5.549 |
| 1,000 + | 3.47 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Serializers & Deserializers - Serdes |
| RoHS | Y |
| Type | Deserializer |
| Data Rate | 1.2 Gb/s |
| Input Type | CML |
| Output Type | LVCMOS |
| Number of Inputs | 1 Input |
| Number of Outputs | 24 Output |
| Operating Supply Voltage | 1.7 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

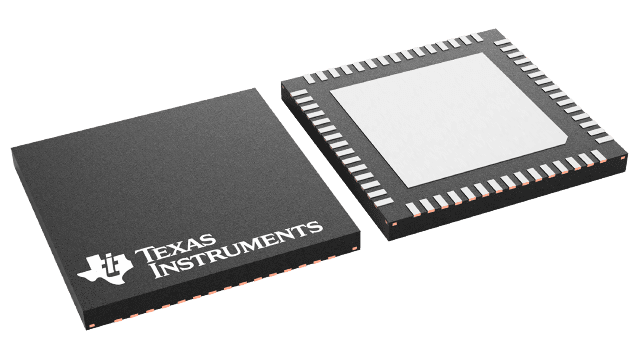

| Package / Case | WQFN-60 |
| Packaging | Reel |
| Series | DS92LV2412 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Serializers & Deserializers - Serdes |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| DS92LV2412SQE/NOPB Datasheet |
More Information
The DS92LV2411 (Serializer) and DS92LV2412 (Deserializer) chipset translates a parallel 24–bit LVCMOS data interface into a single high-speed CML serial interface with embedded clock information. This single serial stream eliminates skew issues between clock and data, reduces connector size and interconnect cost for transferring a 24-bit, or less, bus over FR-4 printed circuit board backplanes, differential or coax cables.
