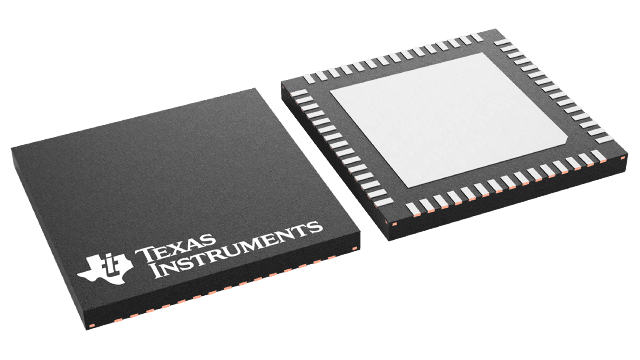

DS92LV2422SQE/NOPB Texas Instruments - Yeehing Electronics

10 to 75 MHz, 24-bit Channel-Link II Deserializer

Pricing (USD)

Quantity	Unit Price
1 — 99	9.834
100 — 249	8.59
250 — 999	6.623
1,000 +	4.15

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Serializers & Deserializers - Serdes
RoHS	Y
Type	Deserializer
Data Rate	2.1 Gb/s
Input Type	CML
Output Type	LVCMOS
Number of Inputs	1 Input
Number of Outputs	24 Output
Operating Supply Voltage	1.7 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WQFN-60
Packaging	Reel
Series	DS92LV2422
Brand	Texas Instruments
Development Kit	LV24EVK01/NOPB
Moisture Sensitive	Yes
Product Type	Serializers & Deserializers - Serdes
Factory Pack Quantity	250
Subcategory	Interface ICs
Unit Weight	0.001411 oz

For more information, please refer to datasheet

Documents

DS92LV2422SQE/NOPB Datasheet

More Information

The DS92LV242x chipset translates a parallel 24–bit LVCMOS data interface into a single high-speed CML serial interface with embedded clock information. This single serial stream eliminates skew issues between clock and data, reduces connector size, and reduces interconnect cost for transferring a 24-bit or less bus over FR-4 printed-circuit board backplanes and balanced cables. In addition, the DS92LV242x chipset also features a 3-bit control bus for slow speed signals. This allows for video and display applications with up to 24 bits per pixel (RGB).
