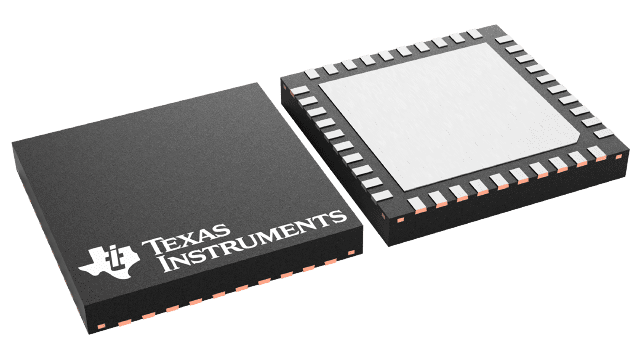

DS92LX1622SQ/NOPB Texas Instruments - Yeehing Electronics

10-MHz to 50-MHz DC-balanced Channel Link III deserializer with bi-directional control channel

Pricing (USD)

Quantity	Unit Price
1 — 99	9.327
100 — 249	7.604
250 — 999	5.976
1,000 +	3.55

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Serializers & Deserializers - Serdes
RoHS	Y
Type	Deserializer
Data Rate	900 Mb/s
Input Type	CML
Output Type	LVCMOS
Number of Inputs	1 Input
Number of Outputs	16 Output
Operating Supply Voltage	1.71 V to 1.89 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WQFN-40
Packaging	Reel
Input Current	1 uA
Series	DS92LX1622
Brand	Texas Instruments
Input Voltage Range - Max	1.89 V, 3.6 V
Development Kit	LX16EVK01/NOPB
Moisture Sensitive	Yes
Operating Supply Current	1 uA
Product Type	Serializers & Deserializers - Serdes
Factory Pack Quantity	1000
Subcategory	Interface ICs
Supply Voltage - Max	1.89 V, 3.6 V
Supply Voltage - Min	1.71 V, 3 V
Unit Weight	0.001929 oz

For more information, please refer to datasheet

Documents

DS92LX1622SQ/NOPB Datasheet

More Information

The DS92LX1621 / DS92LX1622 chipset offers a Channel Link III interface with a high-speed forward channel and a full-duplex back channel for data transmission over a single differential pair. The Serializer/Deserializer pair is targeted for direct connections between automotive camera systems and Host Controller/Electronic Control Unit (ECU). The primary transport sends 16 bits of image data over a single high-speed serial stream together with a low latency bi-directional control channel transport that supports I2C. Included with the 16-bit payload is a selectable data integrity option for CRC (Cyclic Redundancy Check) or parity bit to monitor transmission link errors. Using TI’s embedded clock technology allows transparent full-duplex communication over a single differential pair, carrying asymmetrical bi-directional control information without the dependency of video blanking intervals. This single serial stream simplifies transferring a wide data bus over PCB traces and cable by eliminating the skew problems between parallel data and clock paths. This significantly saves system cost by narrowing data paths that in turn reduce PCB layers, cable width, and connector size and pins.
