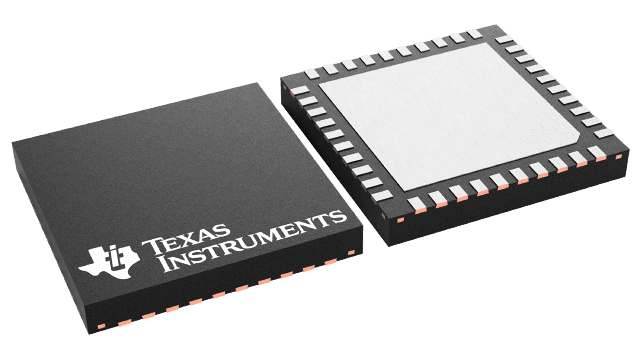

DS92LX2121SQ/NOPB Texas Instruments - Yeehing Electronics
10-MHz to 50-MHz DC-balanced Channel Link III Bi-Directional control serializer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.695 |
| 100 — 249 | 7.904 |
| 250 — 999 | 6.212 |
| 1,000 + | 3.69 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Serializers & Deserializers - Serdes |
| RoHS | Y |
| Type | Serializer |
| Data Rate | 1.05 Gb/s |
| Input Type | LVCMOS |
| Output Type | CML |
| Number of Inputs | 21 Input |
| Number of Outputs | 1 Output |
| Operating Supply Voltage | 1.71 V to 1.89 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-40 |
| Packaging | Reel |
| Input Current | 1 uA |
| Series | DS92LX2121 |
| Brand | Texas Instruments |
| Input Voltage Range - Max | 1.89 V, 3.6 V |
| Development Kit | LX21EVK01/NOPB |
| Moisture Sensitive | Yes |
| Operating Supply Current | 1 uA |
| Product Type | Serializers & Deserializers - Serdes |
| Factory Pack Quantity | 1000 |
| Subcategory | Interface ICs |
| Supply Voltage - Max | 1.89 V, 3.6 V |
| Supply Voltage - Min | 1.71 V, 3 V |
| Unit Weight | 0.001929 oz |
For more information, please refer to datasheet
Documents
| DS92LX2121SQ/NOPB Datasheet |
More Information
The DS92LX2121/DS92LX2122 chipset offers a Channel Link III interface with a high-speed forward channel and a full-duplex control channel for data transmission over a single differential pair. The DS92LX2121/DS92LX2122 incorporates differential signaling on both the high-speed and bi-directional back channel control data paths. The Serializer/ Deserializer pair is targeted for direct connections between graphics host controller and displays modules. This chipset is ideally suited for driving video data to displays requiring 18-bit color depth (RGB666 + HS, VS, and DE) along with a bi-directional back channel control bus. The primary transport converts 21 bit data over a single high-speed serial stream, along with a separate low latency bi-directional back channel transport that accepts control information from an I2C port. Using TI’s embedded clock technology allows transparent full-duplex communication over a single differential pair, carrying asymmetrical bi-directional back channel control information in both directions. This single serial stream simplifies transferring a wide data bus over PCB traces and cable by eliminating the skew problems between parallel data and clock paths. This significantly saves system cost by narrowing data paths that in turn reduce cable width, connector size and pins.
