Description

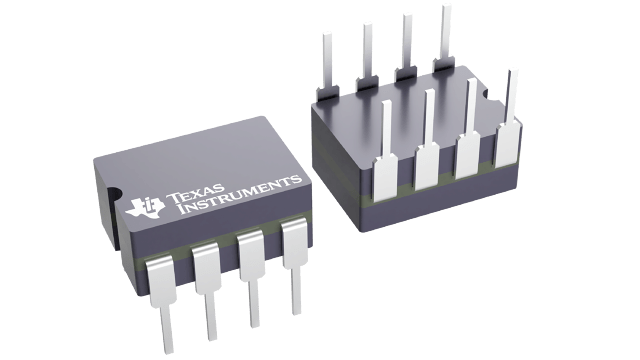

DS9638J/883 Texas Instruments - Yeehing Electronics
RS-422 Dual High Speed Differential Line Driver
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 29.993 |
100 — 249 | 26.66 |
250 — 999 | 21.916 |
1,000 + | 13.72 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
DS9638J/883 Datasheet |
More Information
The DS9638 is a Schottky, TTL compatible, dual differential line driver designed specifically to meet the EIA Standard RS-422 specifications. It is designed to provide unipolar differential drive to twisted pair or parallel wire transmission lines. The inputs are TTL compatible. The outputs are similar to totem pole TTL outputs, with active pull-up and pull-down. The device features a short circuit protected active pull-up with low output impedance and is specified to drive 50Ω transmission lines at high speed. The mini-CDIP provides high package density.
